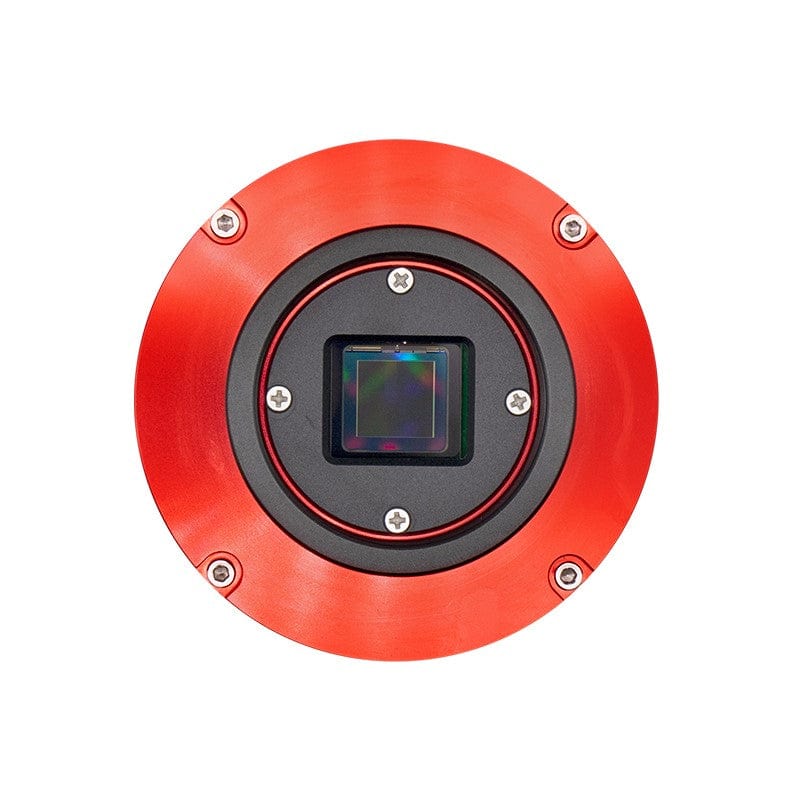

ZWO ASI533MC Pro 9MP Cooled Colour CMOS Telescope Astrophotography Camera - ASI533MC-P

Save $135
ZWOSKU: ASI533MC-P
No reviews

Price:
Sale price$1,079 CAD Regular price$1,214 CAD
Stock:
Back-ordered, please ask us for more details or enter your Email below to be notified when it's back In stock
Green Right Arrow ZWO Drivers and Imaging Software
Green Right Arrow Click here to check this camera's pixel size suitability for your scope

Description

ASI533MC Pro First Light by Maple Gao

Note:ZWO Cooled cameras require a 12V power source for the TEC cooler and USB hub power. If you don't have one, please add it through the options on the right side of the product display.

The IMX533 is a 1-inch, 9MP CMOS image sensor in a square format with a 3.76 um pixel size, capable of producing frames at 20 frames/sec in 14bit mode.

Read out noise is as low as 1.0e which makes it comparable to SCMOS or EMCCD sensors and highly suitable for high definition, low noise imaging.

Important: For the following imaging camera models, please use a separate 12V power supply rather than the power hub in the ASIAIR Pro as the hub cannot provide enough amperage to power the camera's TEC coolers: ASI6200, ASI2600, ASI2400, ASI533, ASI071MC

IMX533 Backlit Sensor

Sony's back-illuminated CMOS image sensor improves sensitivity and noise reduction – the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.

With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor's light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure minimizes the degradation of sensitivity to optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.
Sony has newly developed a unique photo-diode structure and on-chip lens optimized for back-illuminated structures, that achieves a higher sensitivity and a lower random noise without light by reducing noise, dark current and defect pixels compared to the conventional front-illuminated structure.ASI533-backlit sensor

Camera Performance

Low read-out noise, high dynamic range.ASI533-Performance

QE Curve

The QE peak value is more than 80%.ASI533-QE

Zero Amp Glow

Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ‘amp glow'. As the ASI533MC PRO uses zero amp glow circuitry, you won't have to worry about amp glow even when using high gain, long exposure imaging.

With amp glow – exposure 300 second exposure:

ASI533-amp glow

ASI553 frame with no amp glow – Exposure 300 seconds:

ASI533-no amp glow

Dark Current

ASI533-Dark Current


DDR Memory Buffer

The ASI533MC PRO is equipped with a USB 3.0 interface, and even in 14-bit mode, can reach 20 frames per second. The 256MB DDR3 memory ensures stable downloading of frames with increased USB speeds.DDR Memory Buffer


ASI533MC Pro vs ASI183MC Pro

ASI533VSASI183

ASI533-2

The ASI533MC PRO features SONY's latest back illuminated IMX533 sensor, with a 1-inch square, 9.07MP sensor that is ideal for astronomical photography needs and can be considered as the latest iteration of the venerable ASI183MC Pro.

As you would expect this latest generation camera not only retains key features of the ASI183 series such as an attractive QE figure, high frame rate and along with other excellent characteristics of the ASI183 cameras, but also now includes new and improved features such as zero amp glow, extreme low read out noise (as low as 1.0e), 3.76 microns pixel size and an improved 2 stage TEC cooler giving enhanced cooling capabilities.

Mechanical Diagram

ASI533-Mechanical Diagram

Here is a review by Trevor Jones (as posted on the ZWO website)


What's in the box?

ASI533-包装清单(英文)

Notice:Cooled cameras need a 12v power adapter - If you don't have a suitable one, please purchase one along with the camera.

The best solution for 55mm back focus

55MM COOLED CAMERA55MM COOLED CAMERA-2



Read more: https://astronomy-imaging-camera.com/tutorials/best-back-focus-length-solutions-55mm.html

Drivers and Software

The ZWO website has newest camera drivers and many DSO and Planetary capture software. Please make sure the newest driver and software has been installed before you start shooting:

https://astronomy-imaging-camera.com/software/
