ToupTek ATR585M 8.29MP 2.9um USB 3.0 Monochrome Telescope Astronomy Camera - ATR585M

ToupTekSKU: ATR585M

Price:
Sale price$909 CAD
Stock:
Only 1 unit left
Have a question? Chat with us!

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description

Note: All DSO Cooled Cameras need to be connected to an external 12VDC power supply to image.

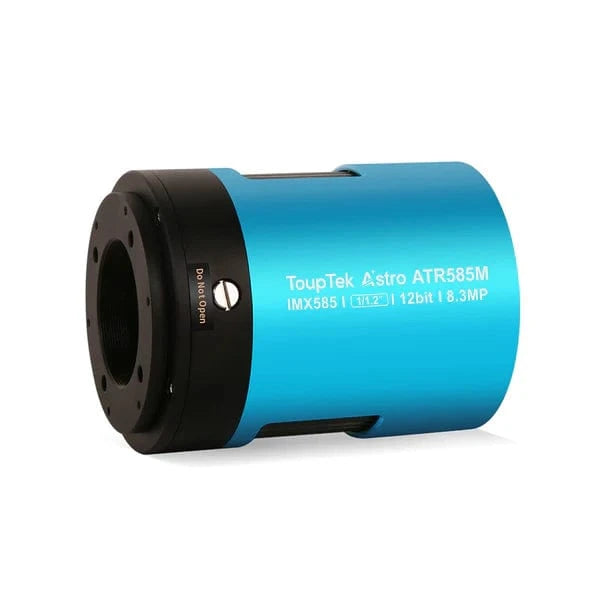

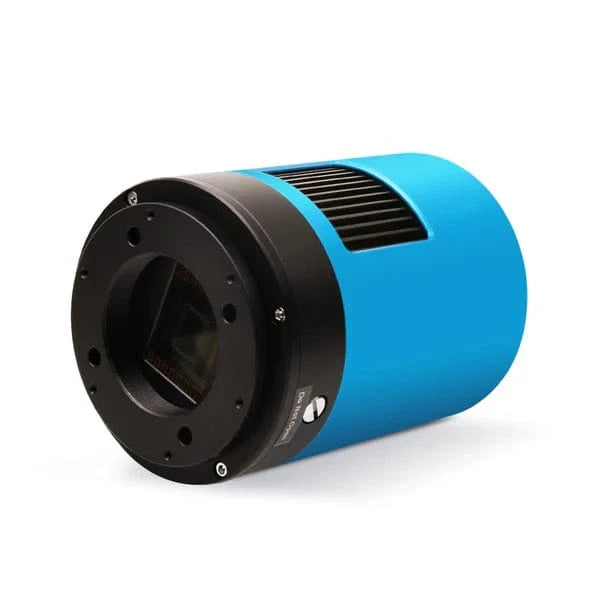

The ATR585M camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.

ATR585M

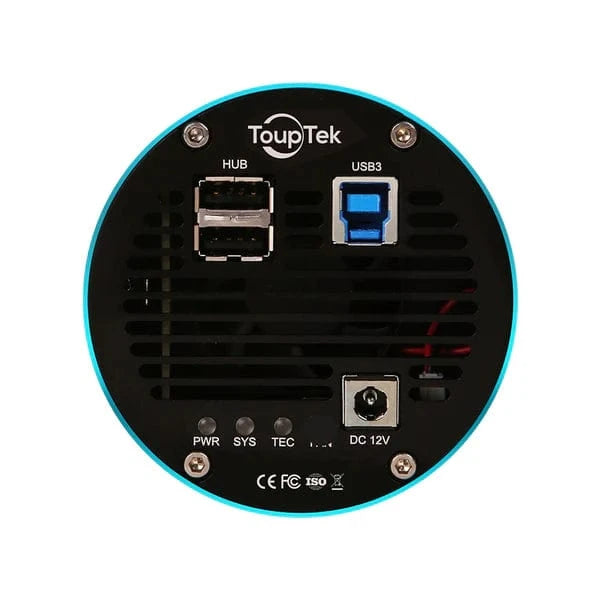

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

ATR585M


STARVIS 2

STARVIS refers to the backlight image sensor technology developed by Sony to improve low light characteristics and near-infrared sensitivity. STARVIS 2 improves dynamic range and near-infrared sensitivity compared to STARVIS1. Benefiting from it, ATR585M shows better performance.



Sensor Infor

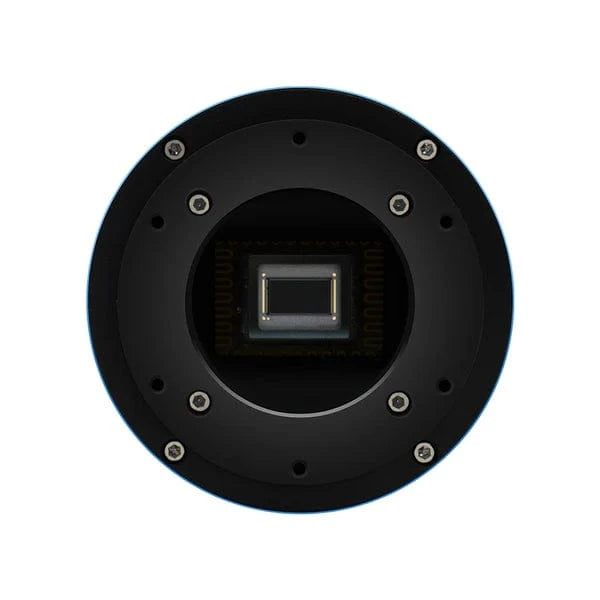

ATR585M is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.

ATR585M


DDR3

ATR585M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

ATR585M


Two stage TEC cooling system

ATR585M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

ATR585M


Zero Amp-Glow

ATR585M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.

ATR585M


Anti-dew technology

ATR585M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.

This heating function consumes about 5 watts, which can be turned off via software to save power.

Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.



Camera parameters(Full resolution、RAW 12-bit mode、Temperature: -10°C、LCG)



Camera parameters(Full resolution、RAW 12-bit mode、Temperature: -10°C、HCG)



Camera parameters(Full resolution、RAW 16-bit HDR mode、Temperature: -10°C)

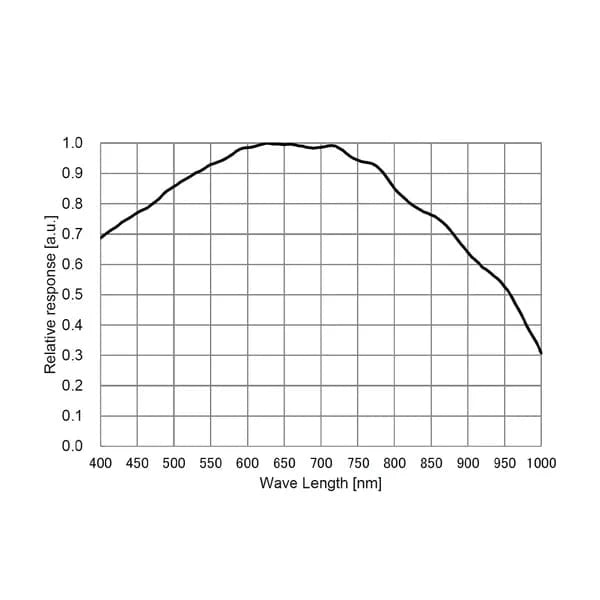

Spectral Response

Mechanical Diagram

ATR585MATR585MATR585MATR585M

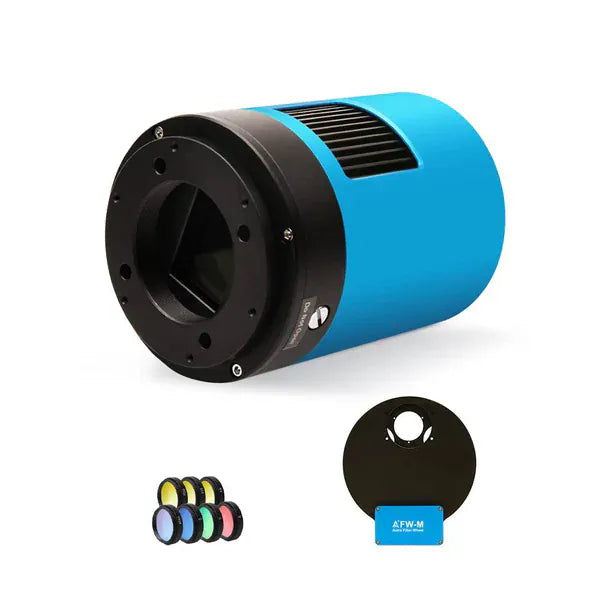

Connection with Accessories

ATR585M

Packaging List

ATR585M
ATR585M
