Description
SV405CC OSC Astronomy Camera IMX294 for Deep Sky Astrophotography
Features
1. Back-illuminated sensor – improving sensitivity and reducing noise. Excellent micro-4/3 CMOS sensor with 4144x2822 (11.7 megapixel) resolution to capture fine details in astronomical objects.
2. With ADC 10-bit output mode, the SV405CC can run up to 19fps at 4k format when used with USB 3.0
3. HCG mode--When set the gain at 120 or higher, the HCG mode is automatically enabled, and reduce the read noise to even lover levels without loss the dynamic range.
4. Exceptional low-illumination performance of SNR1s：0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63um.
5. With AR coating, SV405CC can be obtained by shooting visible light with an IR CUT filter; infrared shooting with different filters, such as IR685, IR850.
2- Stage TEC Cooling
AR Coating

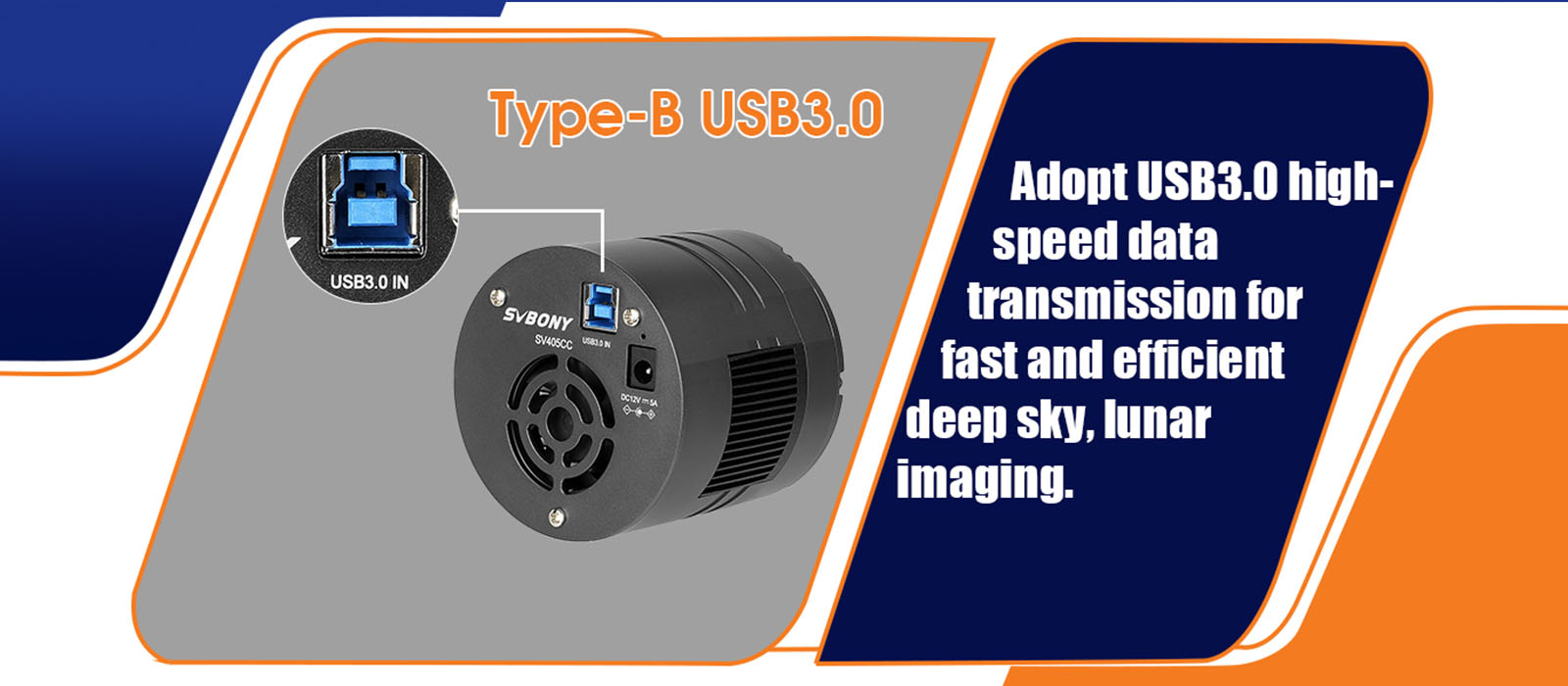

Type-B USB 3.0

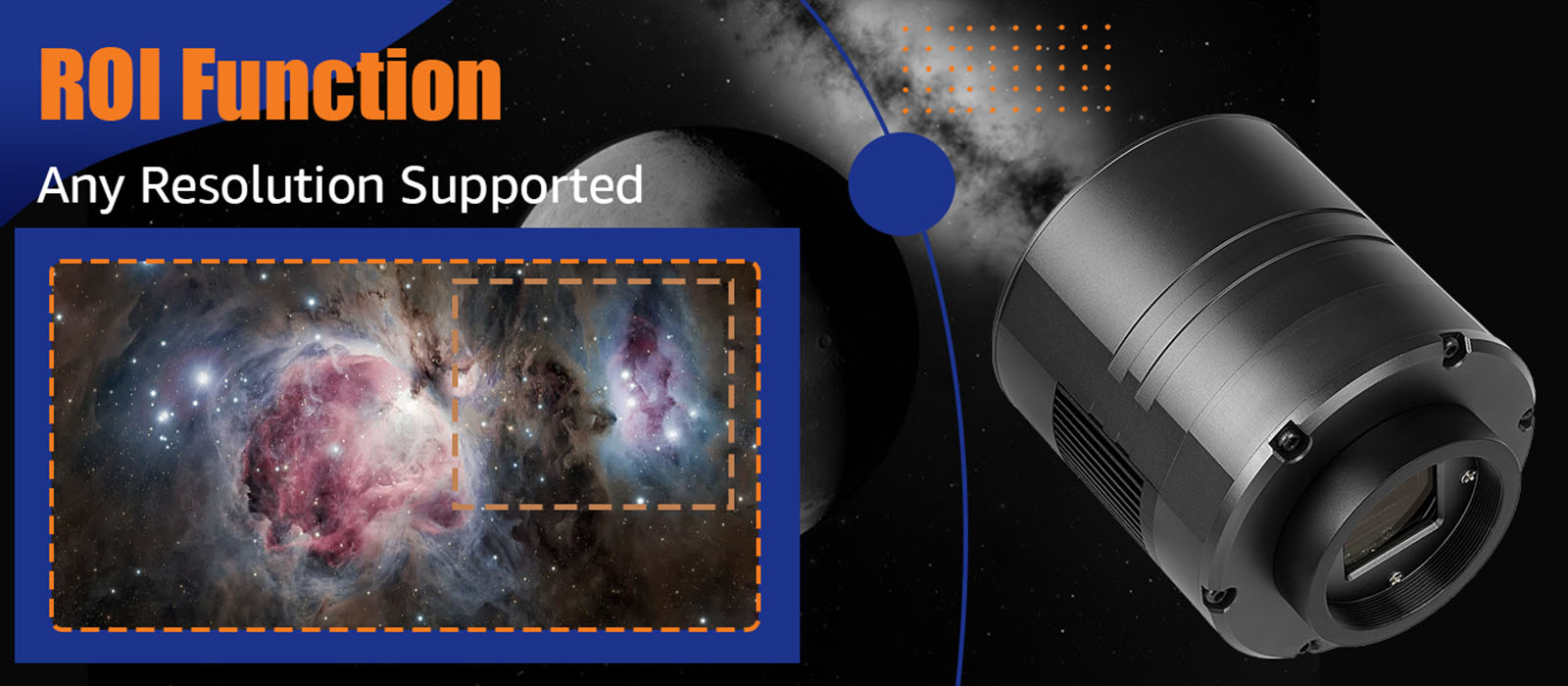

ROI Function - Any Resolution Supported
DDR3 256M Buffer
The Image Captured With SV405CC

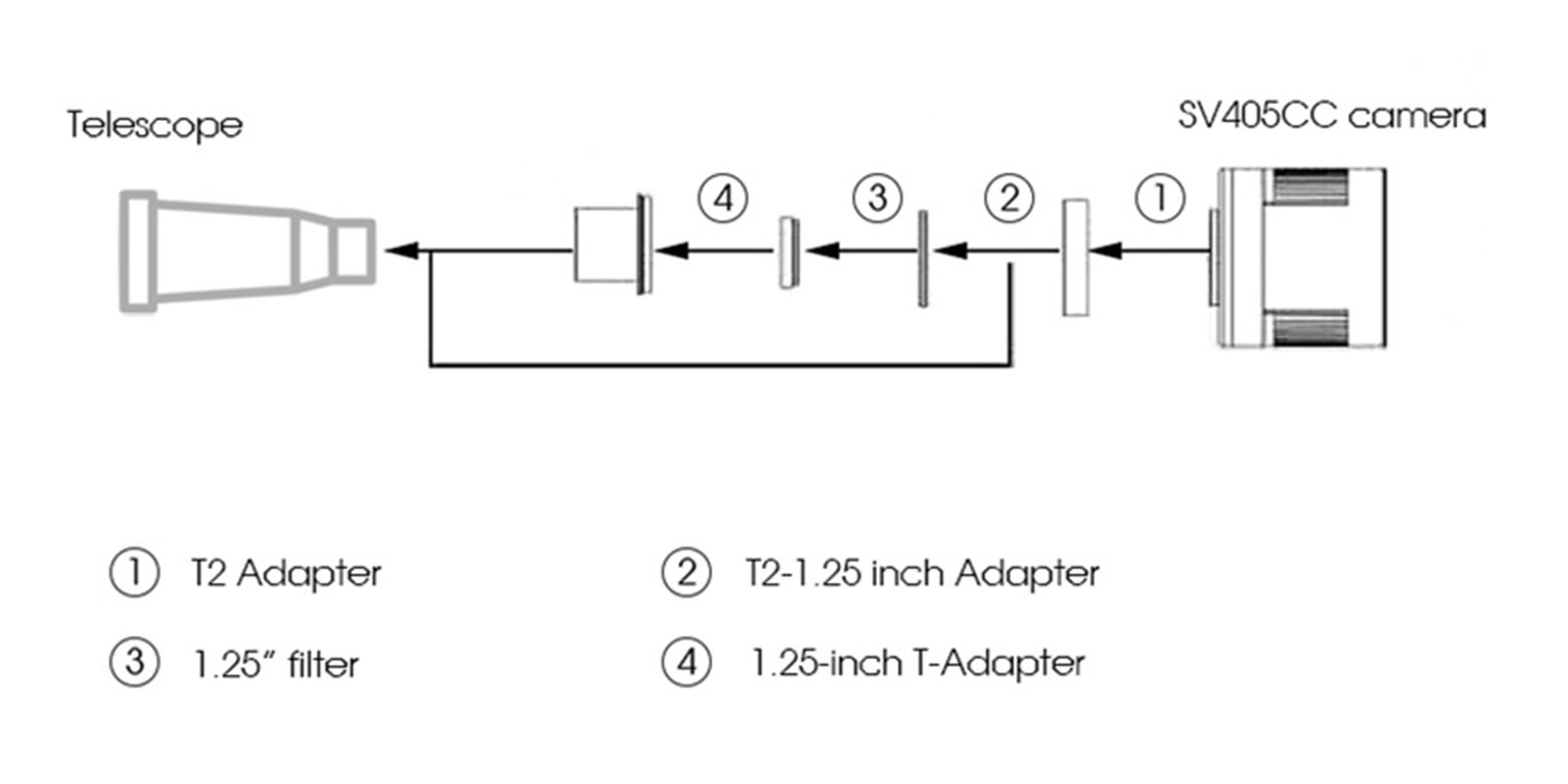

Connect With Telescope
Package Includes
Specifications
| Model | SV405CC |
| Sensor | IMX294 |
| CMOS Image Resolution | 4144*2822 |
| Total Pixels | 11.7 megapixel |
| Pixel Size | 4.63mm |
| Target Size | 19.2mm*13mm |
| Diagonal | 23.2mm |
| Maximum Frame Rate | 19FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |
| DDRIII Buffer | DDR3 256M |
| Exposure | 0.05ms-2000s |
| Readout Noise | 1.2e |
| QE Peak | 0.75 |
| Full Well | 63ke |
| ADC | 14bit |
Additional Resources
