Sharpstar Optics 0.8x Reducer and Flattener for Full Frame Cameras for the Sharpstar 76EDPH - SHRD76

On Back Order - Ask Us For Details or

Enter Your Email Below to be Notified When In Stock

Flattener
SHRD76
$307 CAD
We will price-match in-stock Canadian astronomy dealer pricing


Ask a Question About This Product

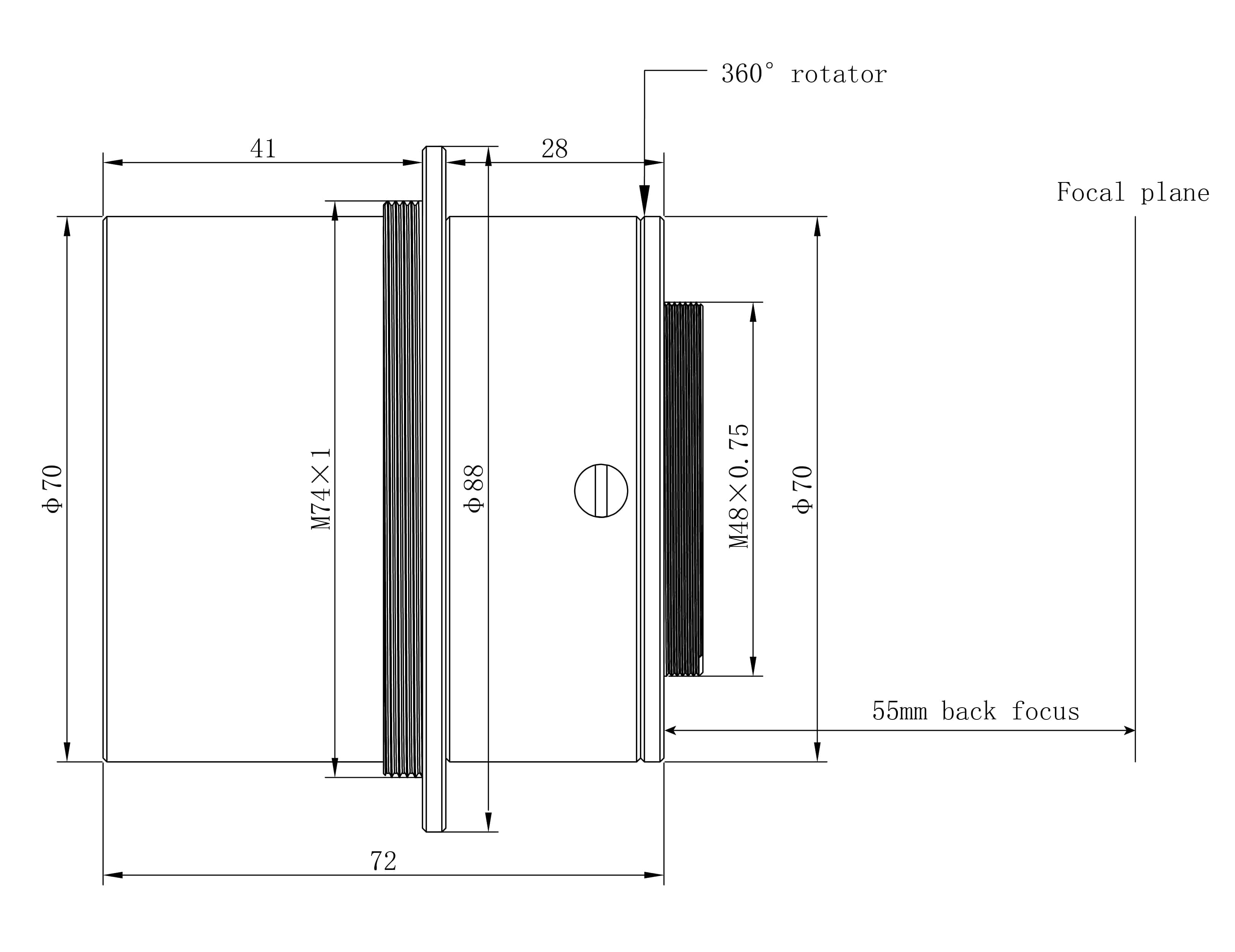

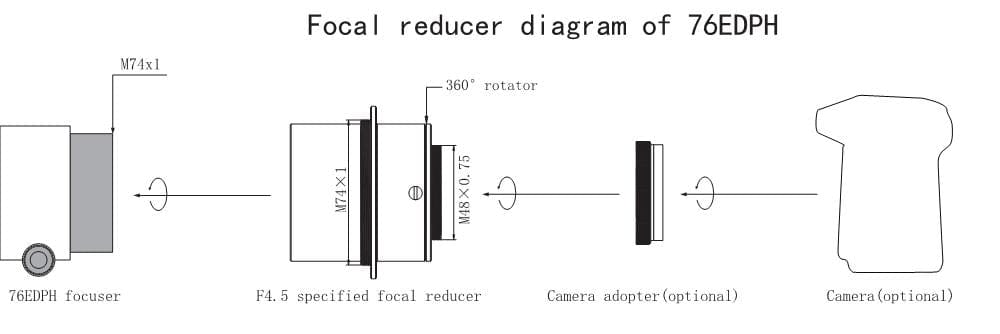

The 2.5" 76EDPH f/4.5 full-frame reducer is made for the Sharpstar 76EDPH astrograph. At one end of the reducer there is M74×1 thread, tapped for the connection to the 76EDPH’s reducer and at the other end the reducer there is M48×0.75 thread for the connection of most stock cameras. The back focus is 55mm after the attachment of a camera.

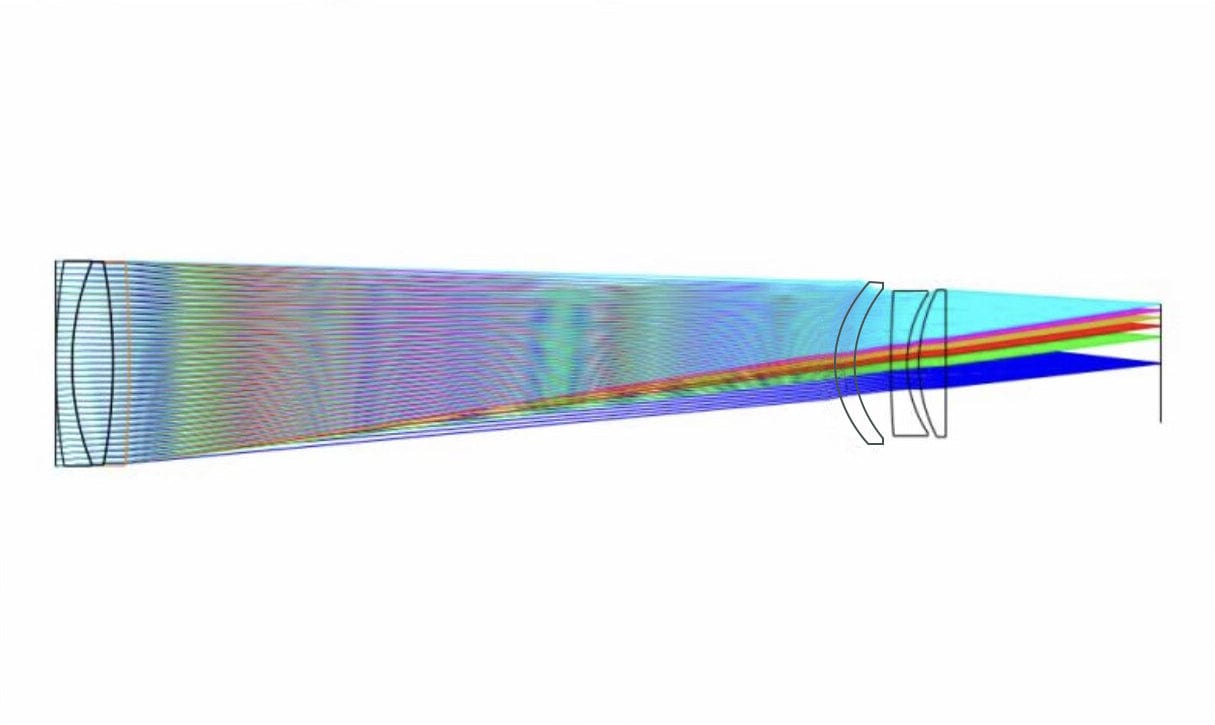

The reducer is designed with a three-element air-spaced lens structure, supporting full-frame imaging, effectively controlling unwanted vignette. The practical focal ratio of the Sharpstar 76EDPH when used with this reducer is f/4.5, and the focal length can be shortened to 342mm. It’s preferred by many deep-sky astrophotographers.

Another improvement is that the f/4.4 reducer is also designed with a 360-degree rotator, which is of great convenience for composition when imaging the deep-sky objects. The above-mentioned M48 thread is suitable for the connection for standard 2" filters.

Focal Ratio:f/4.5

Image Circle:44mm

Lens:Three-element air-spaced structure

Outer Diameter:88mm

Back Focus:55mm

Length:77mm(including the M48 thread)

Coating:Full-surface multi-layer coating

Weight:0.5kg
