Description
- 20X–200X MAGNIFICATION WITH PROFESSIONAL-QUALITY OPTICS: 5-element IR-cut glass lens delivers crisp, detailed views of coins, circuit boards, textiles, insects, and more.
- TRUE 5MP DIGITAL SENSOR: Capture stunning, high-resolution images (up to 2592 x 1944 pixels) and VGA-quality video for sharing, analysis, or archiving.
- BUILT-IN POLARIZING FILTER: Reduce glare and reflections on shiny or wet surfaces with the adjustable polarizing filter wheel for clearer, more detailed views.
- CONVENIENT ONE-TOUCH SNAPSHOT BUTTON: Press the button to capture images anytime without touching your computer.
- USB-C CONNECTIVITY + LONGER CABLE: Plug-and-play connection to Windows and Mac computers with an over 4-foot USB-C cable.
- ¼”-20 TRIPOD THREAD FOR ADDITIONAL STABILITY: Mount the microscope on any standard photo tripod (sold separately) for steady, vibration-free imaging.

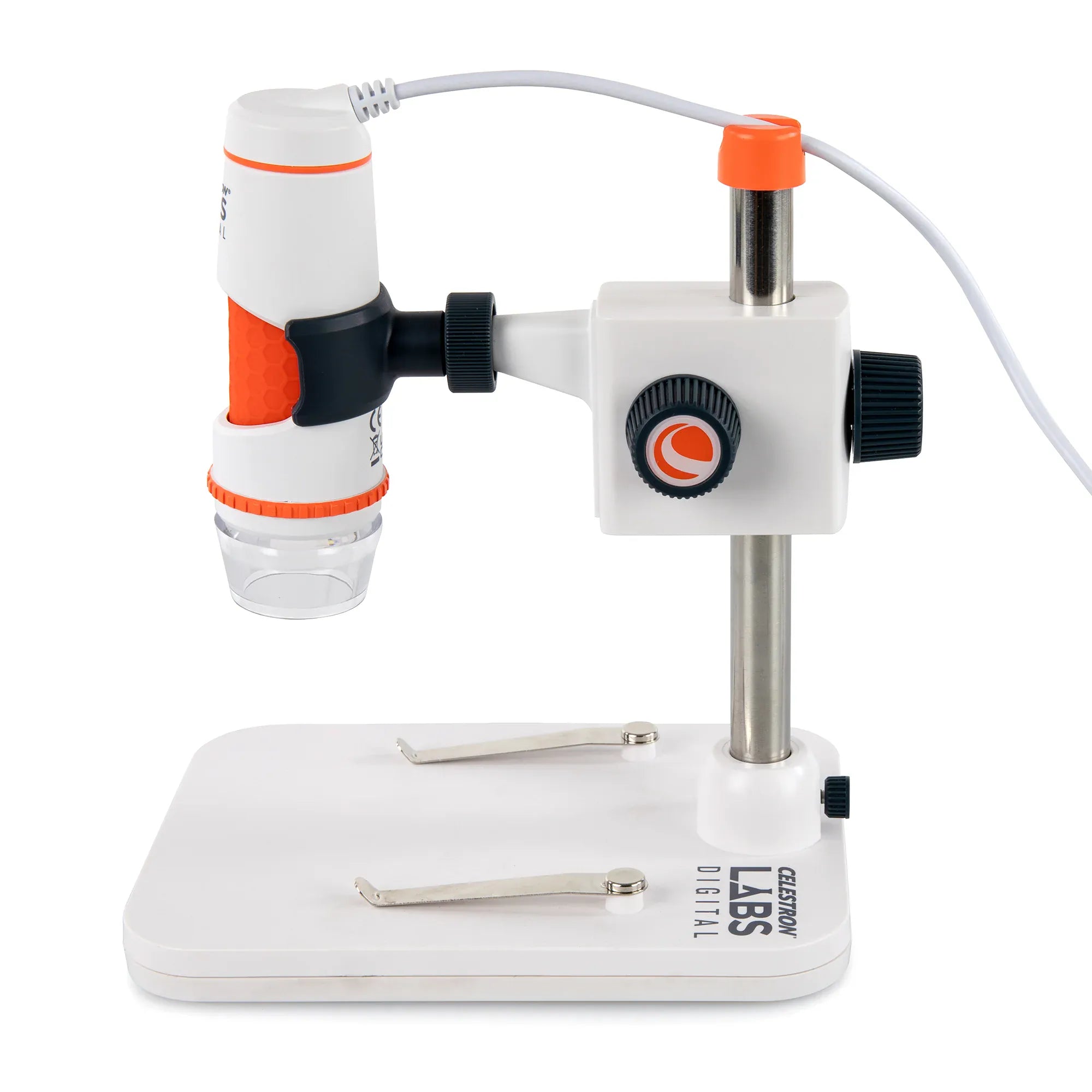

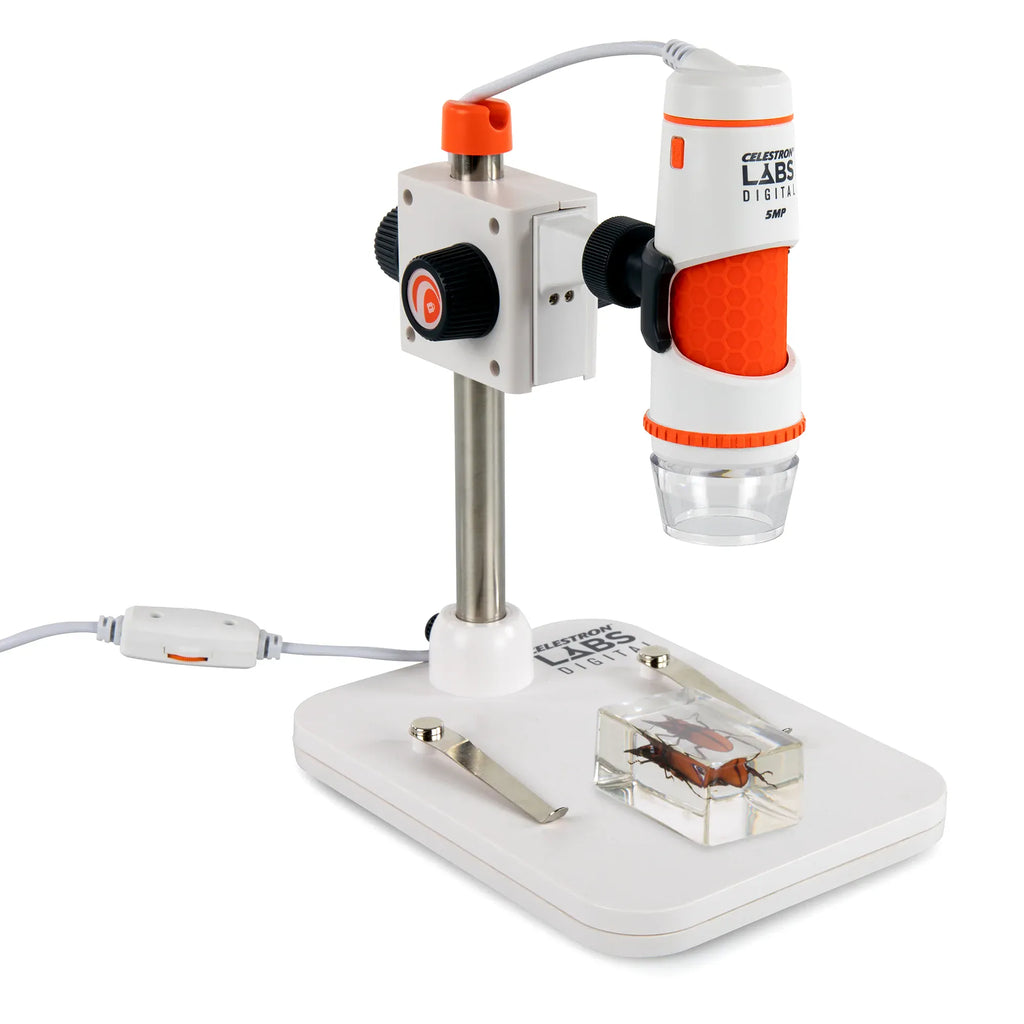

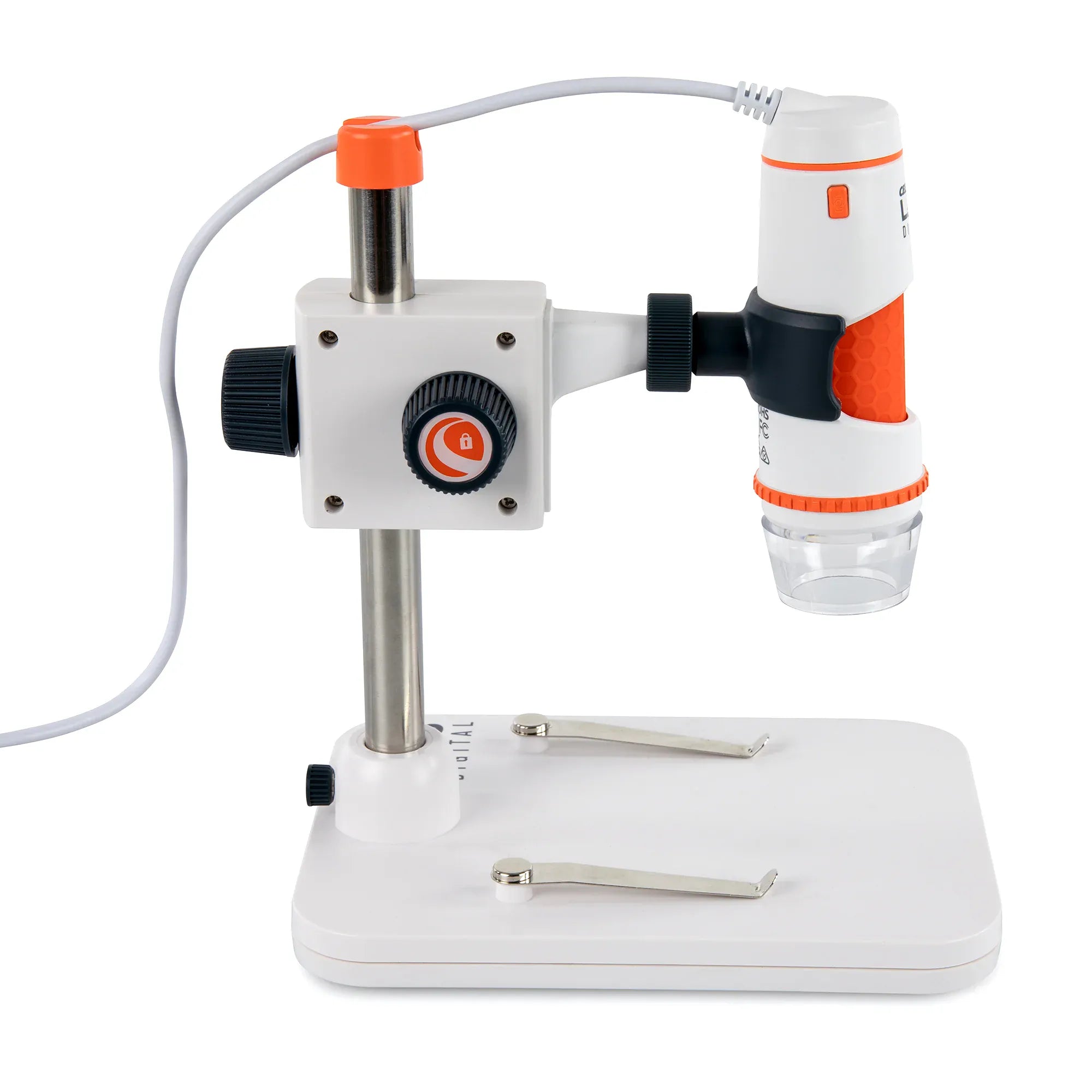

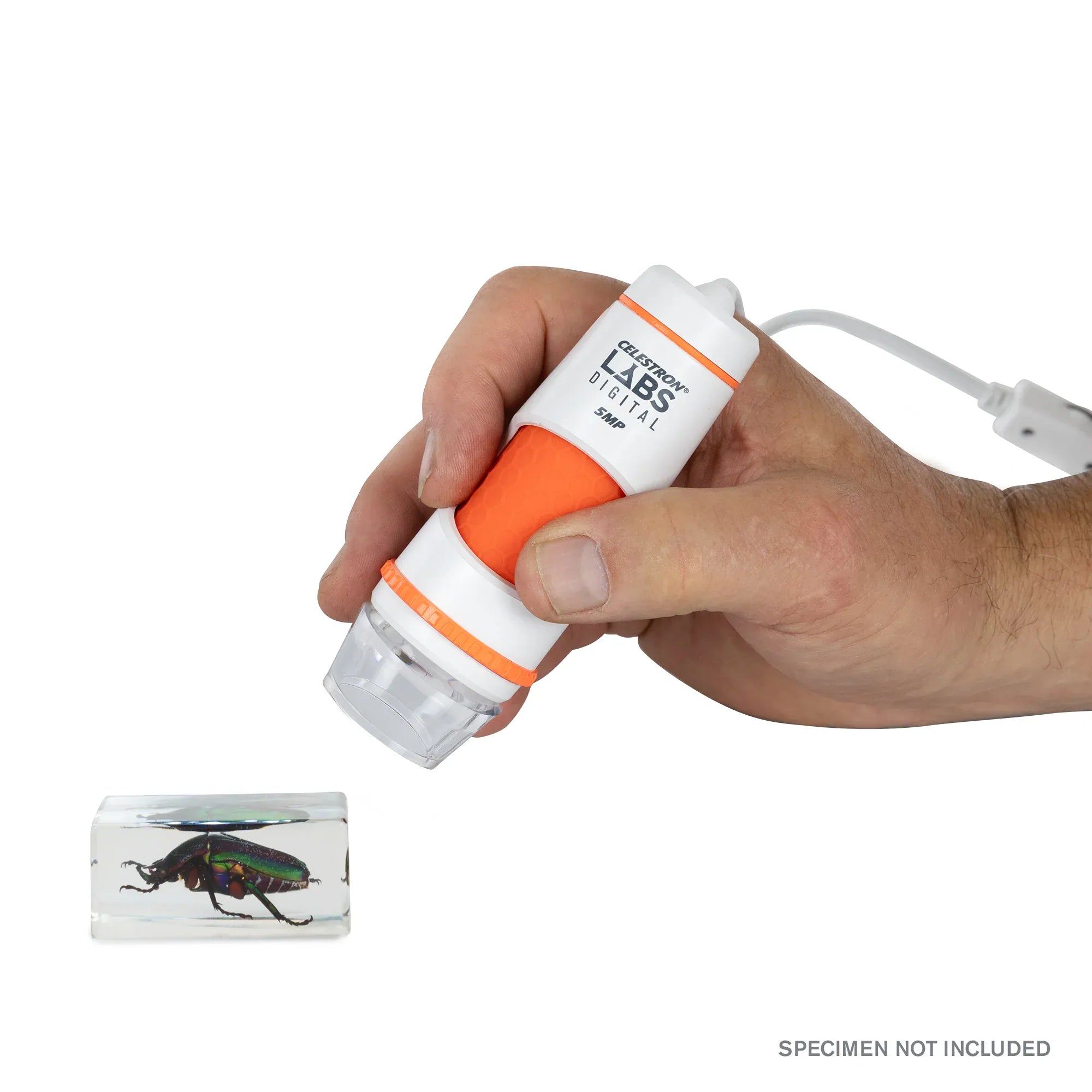

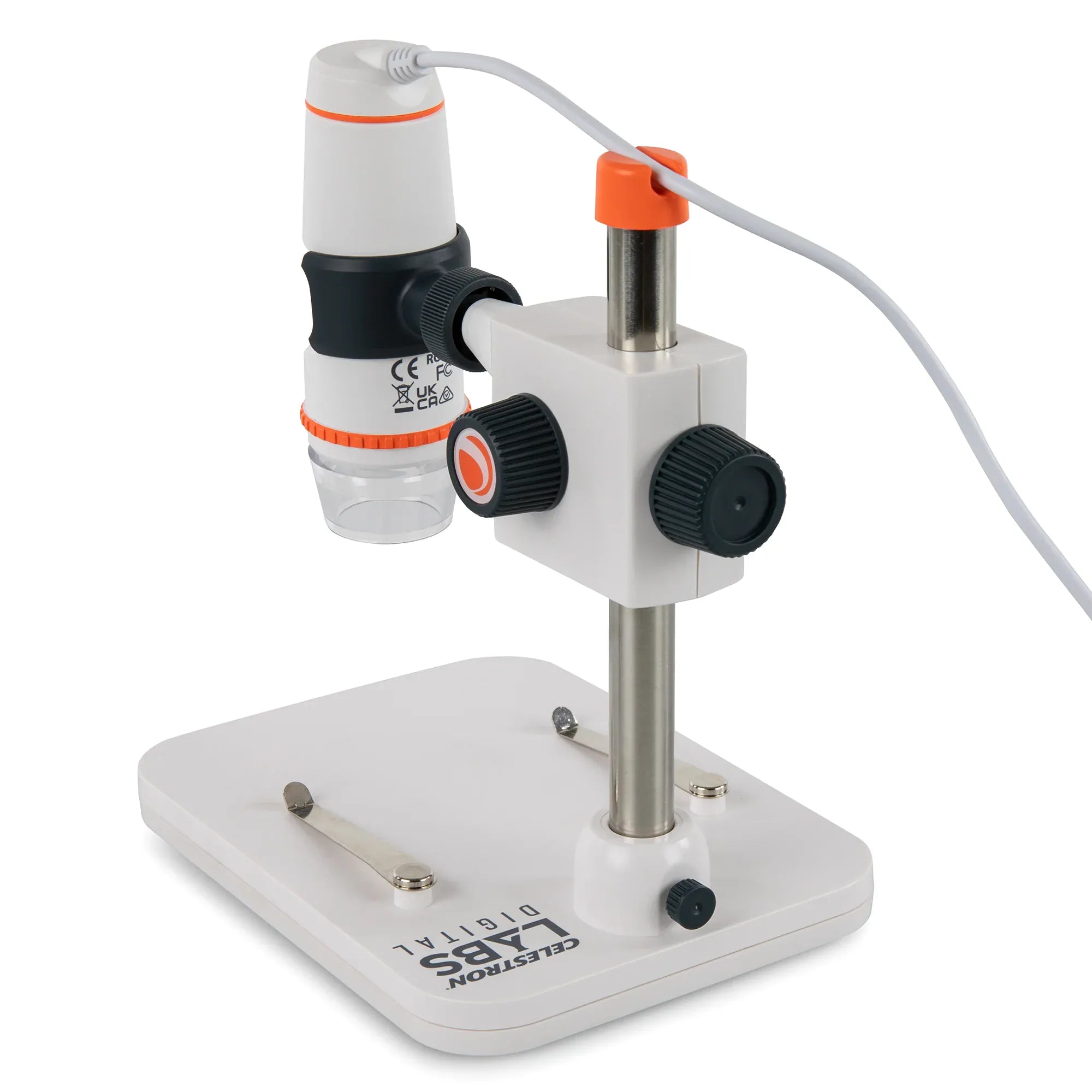

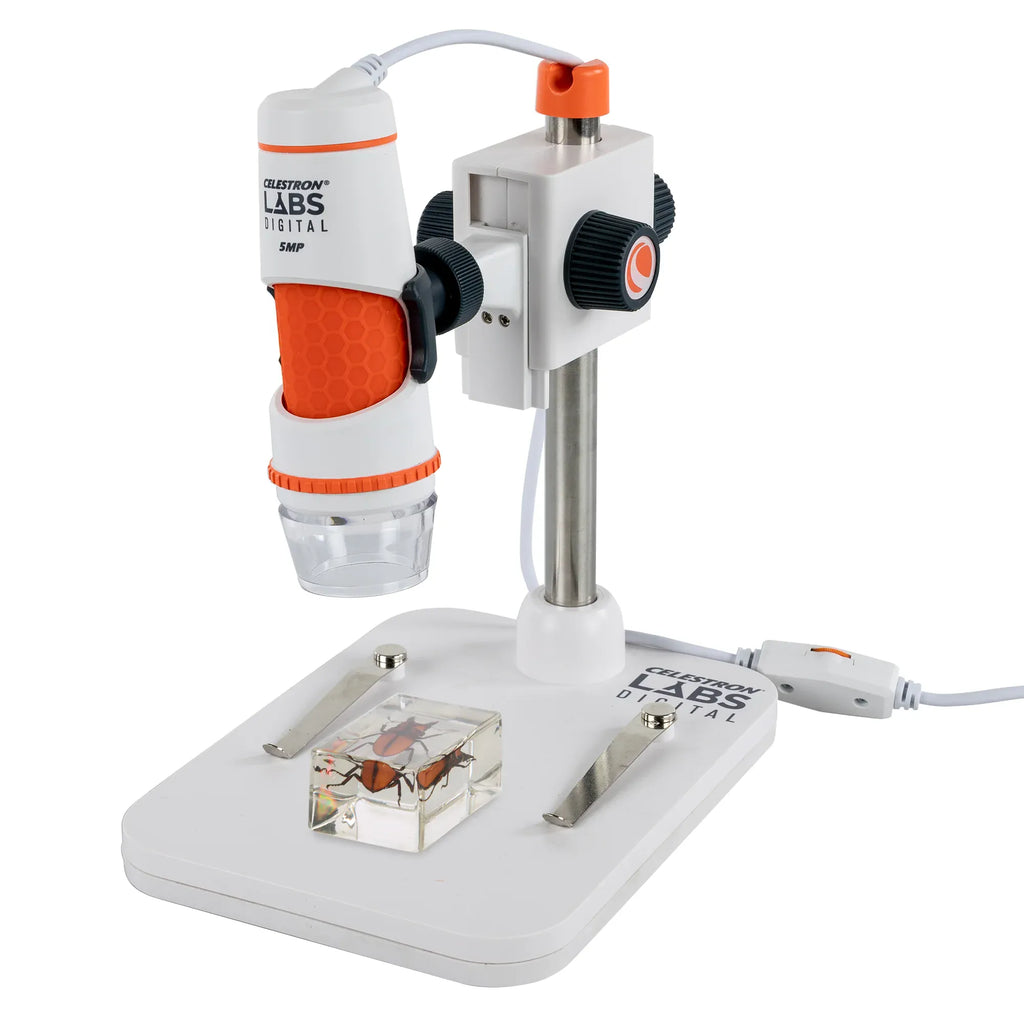

- HANDHELD OR HANDS-FREE VIEWING WITH ADJUSTABLE STAND: Hold the microscope to examine specimens up close or go hands-free and steady your view with the included stand featuring a 180° rotating arm and built-in specimen clips.

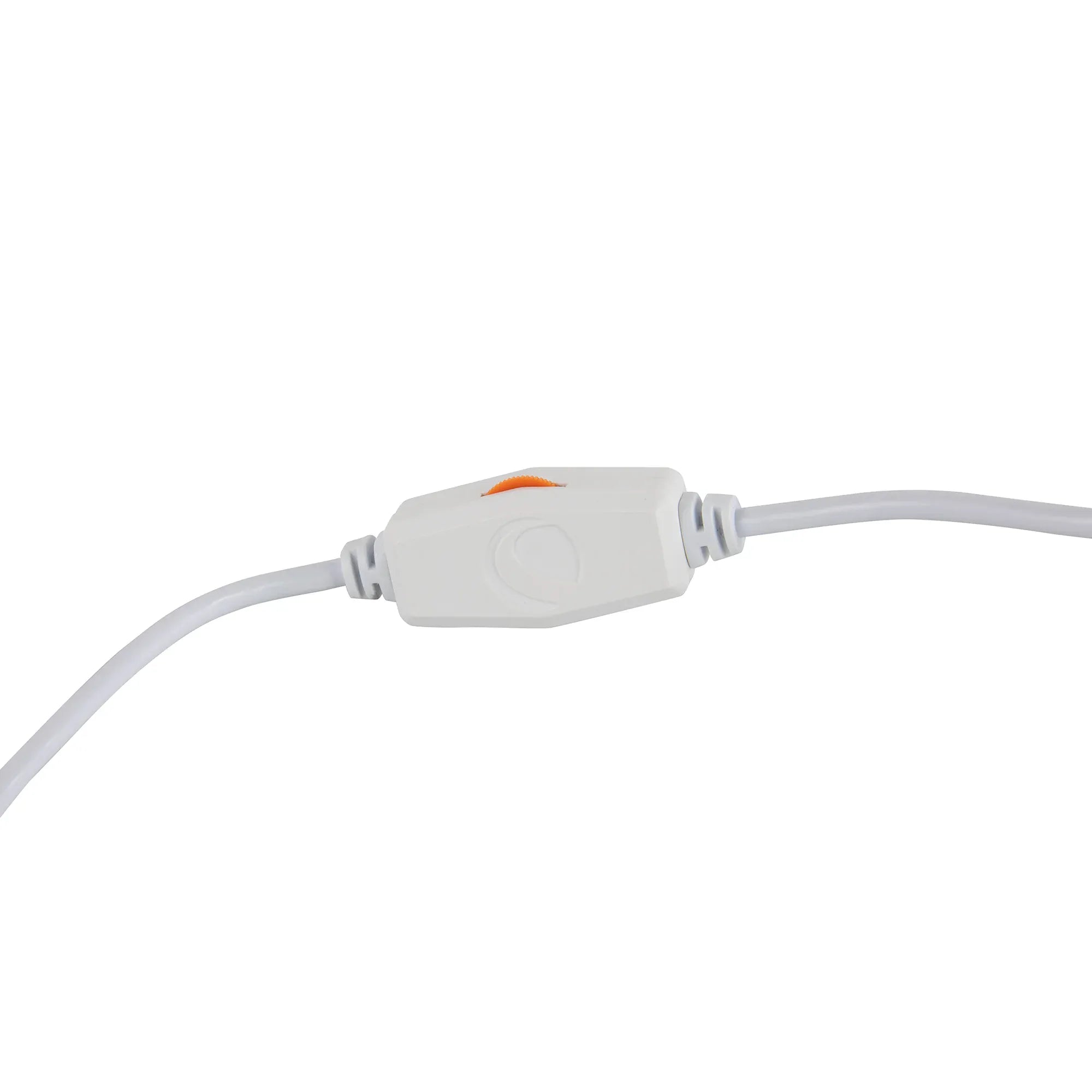

- ADJUSTABLE LED ILLUMINATION: A ring of white LEDs with brightness control ensures your specimens are always well-lit.

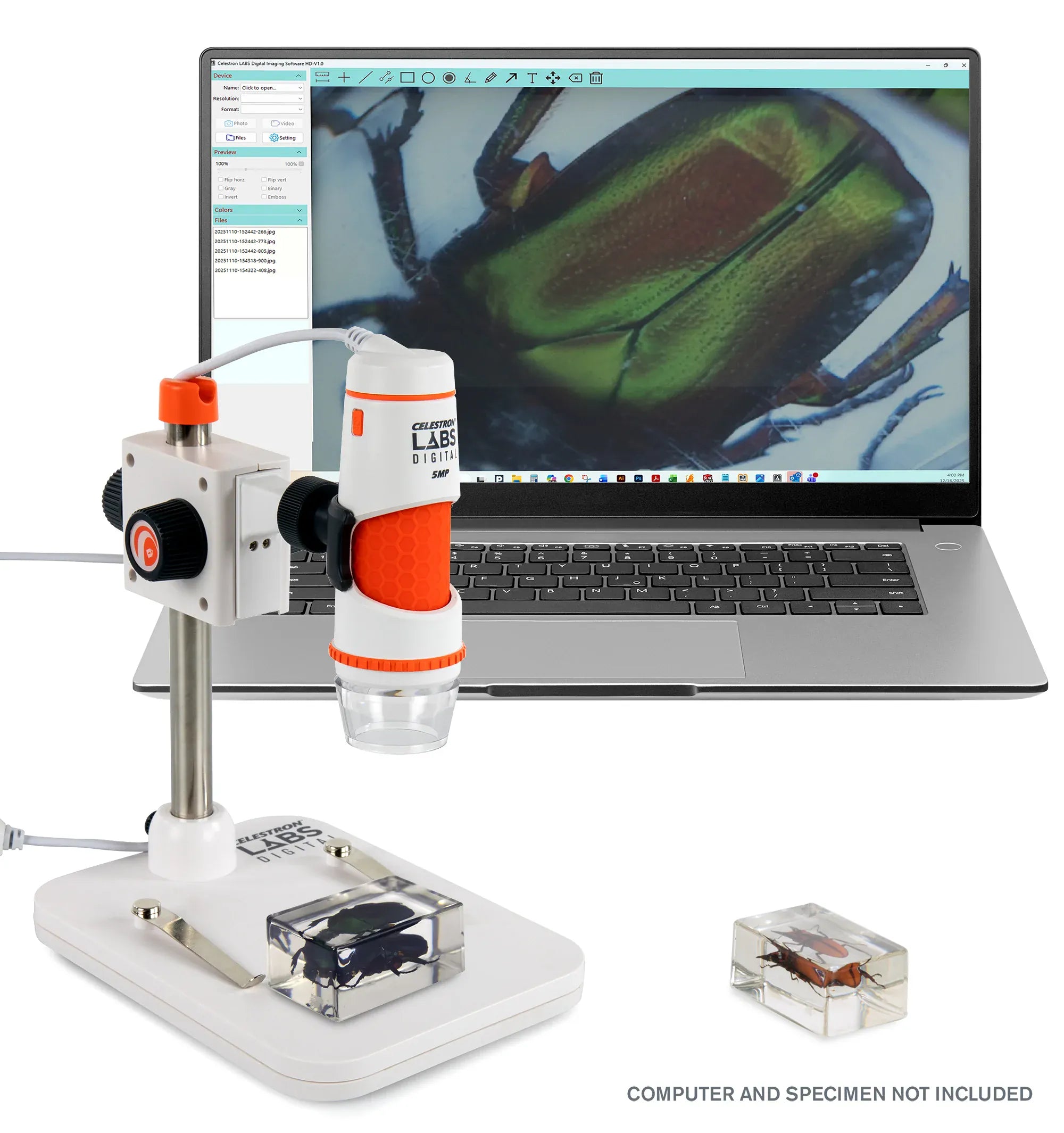

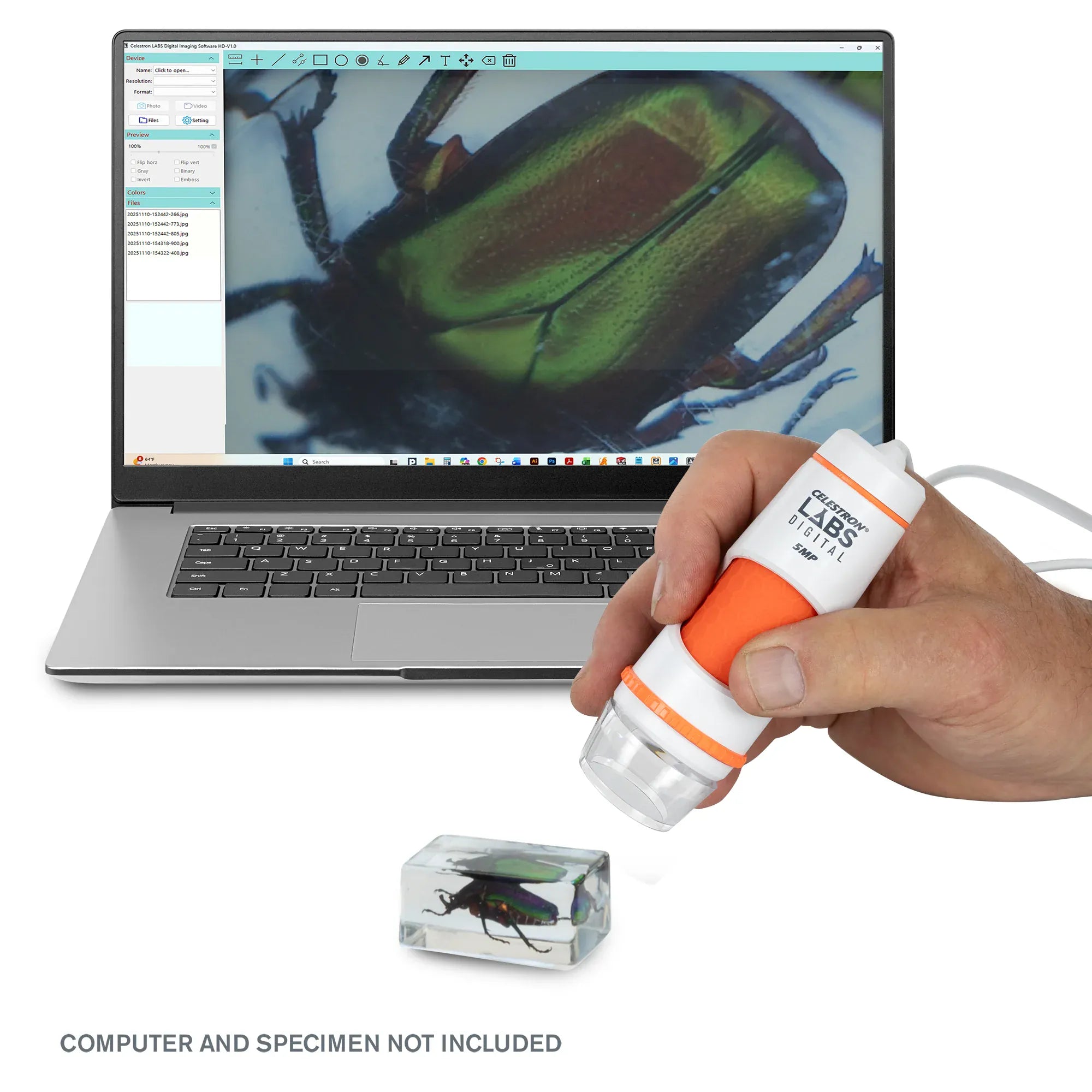

- POWERFUL DIGITAL SOFTWARE + CALIBRATION RULER: Free Celestron Labs Digital software lets you view, capture, measure, and annotate specimens, and a calibration ruler is included for accurate measurements.
| Type of Microscope: | Handheld Digital |
|---|---|
| Nosepiece: | Clear plastic |
| Objective(s) Type: | Single adjustable internal objective |
| Focus Type(s): | Barrel focus: Course Focus | Fine Focus |
| Magnification Range: | 20x to 200x |
| Illumination Type: | Ring Illuminator- 8 LED-Adjustable |
| Illumination Position(s): | Upper- At Nose |
| Illumination Adjustability Mechanism: | Adjustment Wheel- On barrel |
| Sensor Type: | 5 MP CMOS |
| Sensor Size: | 1/ 2.8" Sony IMX335 |
| Resolution: | 2592 x 1944 |
| Pixel Size: | 2 x 2 μm |
| Eyepiece Type: | CMOS sensor in lieu of eyepiece |
| Screen Type: | Screen is your PC |
| Screen Size: | Screen is your PC |
| Still image capture resolution: | 2592 x 1944/ 1600 x 1200/ 1280 x 960 |
| Video capture resolution: | 2592x1944, 1920 x 1080, 1280 x 720, 640 x 480, Max frame rate 30fps |
| Video Format - Streaming: | MJPEG: 2592x1944, 1920 x 1080, 1280 x 720, 640 x 480, Max frame rate 30fps |
| Memory type: | No on-board memory |
| Power Source: | 2.0 USB-C 5V (non-removable cable) |
| Shutter Trigger: | In Software and on body |
| Software: | Celestron Labs Digital HD Software |
| Software Compatibility: | Windows 7.1 to Windows 11 | Mac OSX 10.5 and higher |
| Microscope Dimensions: | Microscope: 33mm x 33mm x 112.8mm (1.3" x 1.3" x 4.44") | Stand: 171.445mm x 120.65mm x 171.45mm (6.75" x 4.75" x 6.75") |
| Microscope Weight: | 253g (.55lbs) |

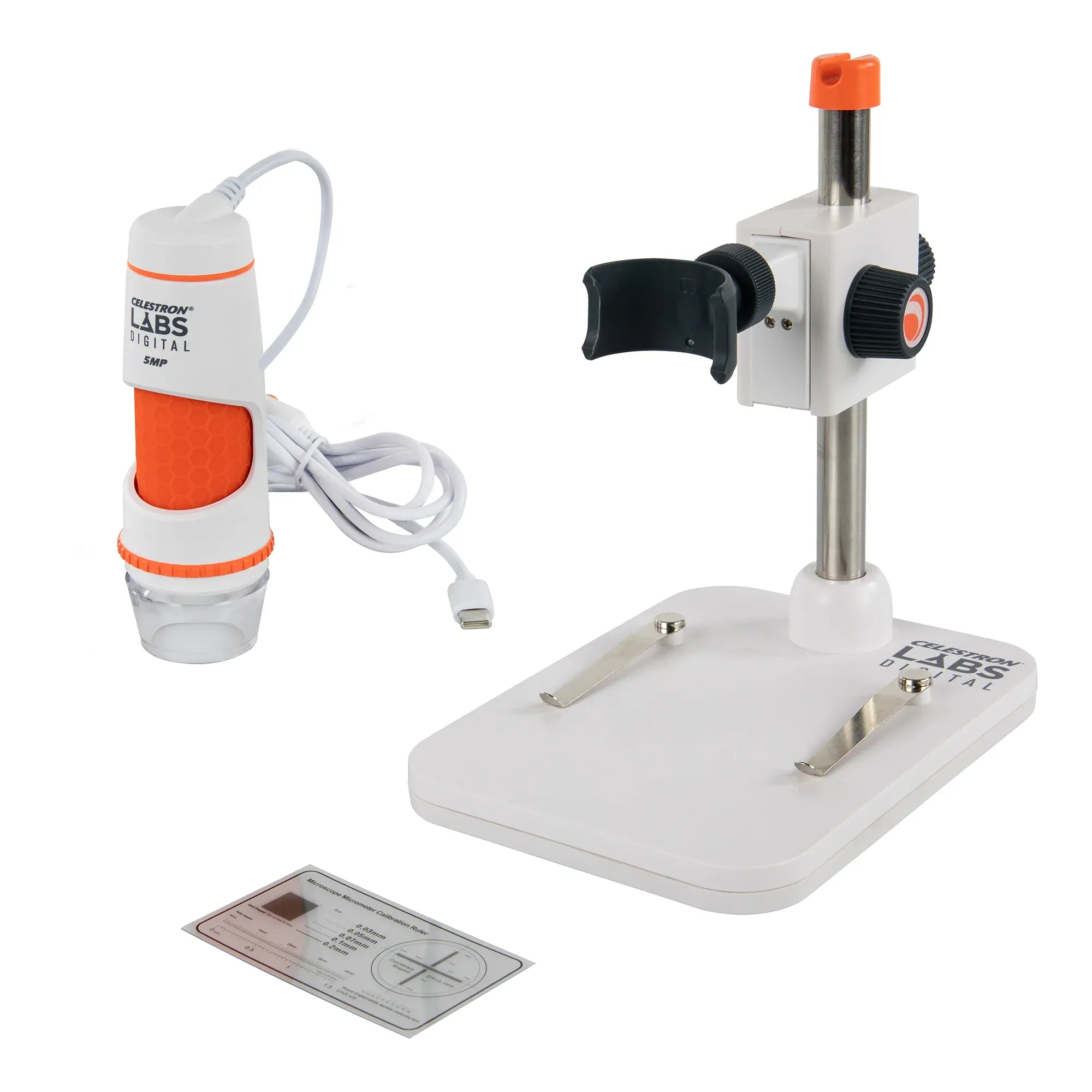

| Included Items: | Quick Setup Guide Plastic and metal adjustable stand with 1/4-20 thread clip holder Calibration Ruler Built in adjustable light polarizing filter |
