Description
- 20X–200X MAGNIFICATION WITH HIGH QUALITY OPTICS: 2-element IR-cut glass lens delivers crisp, detailed views of coins, circuit boards, textiles, insects, and more.
- CAPTURE SHARP IMAGES AND VIDEO: Built-in 2MP camera lets you easily document your discoveries with crisp still images (up to 1920 x 1080 pixels) and VGA-quality video.

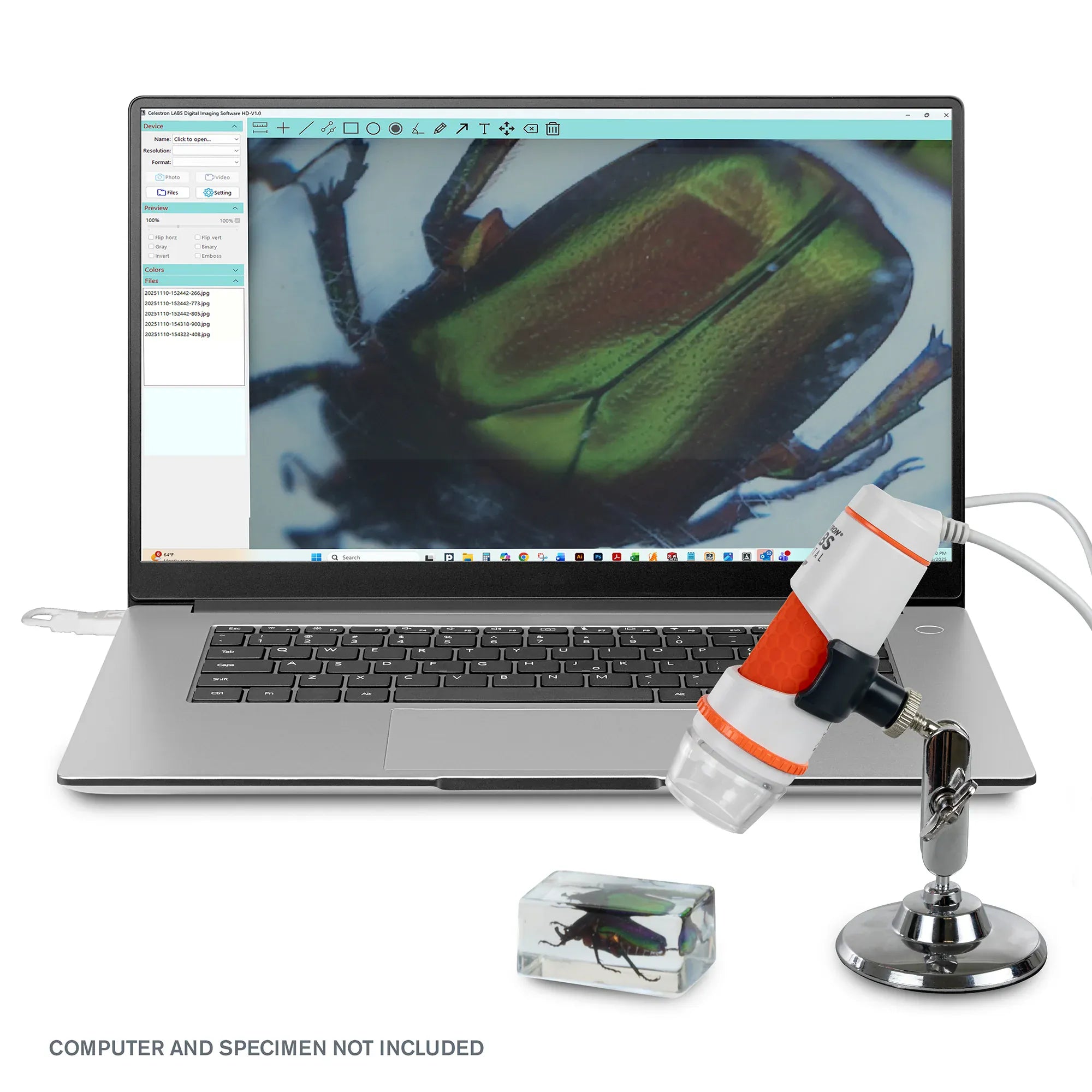

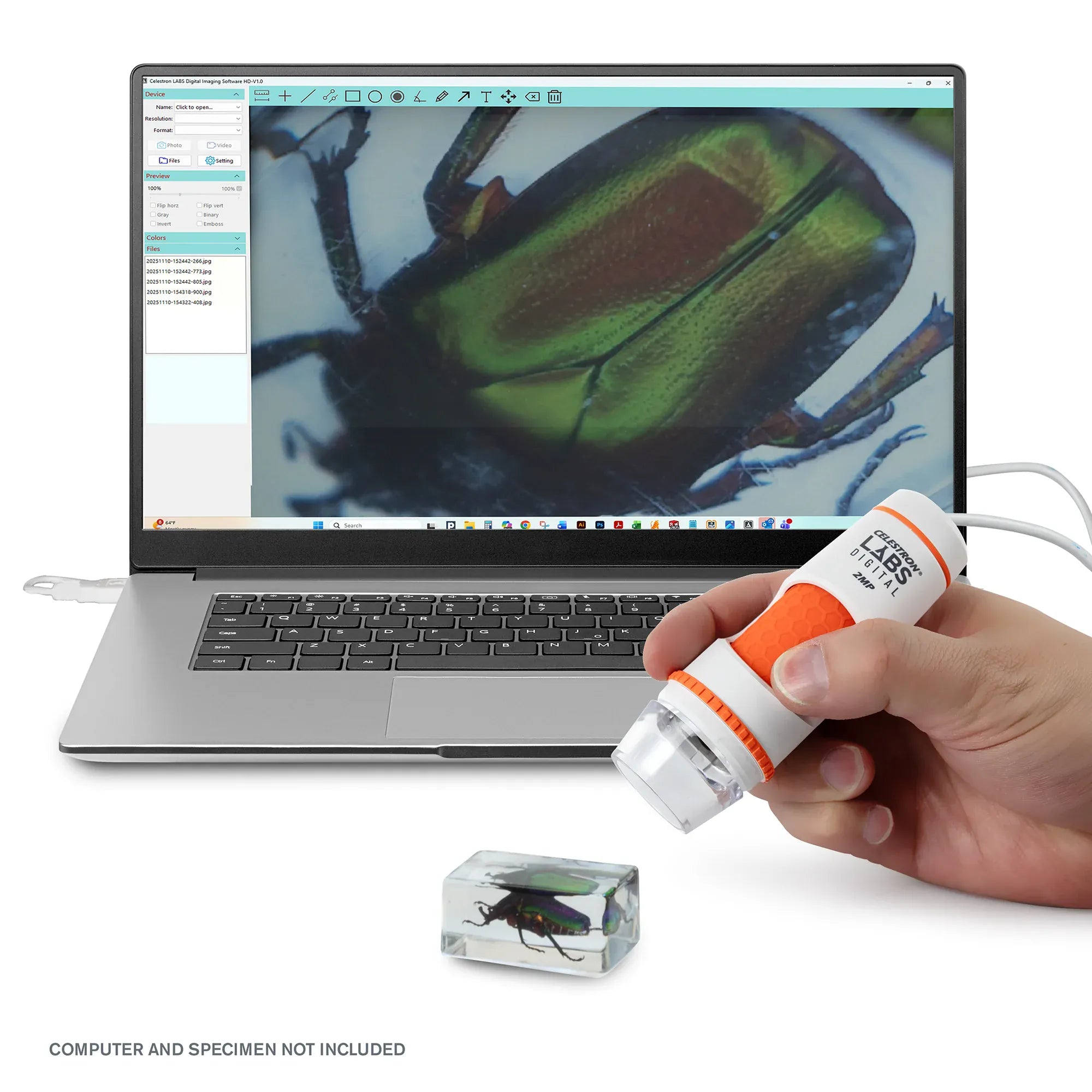

- USB POWERED AND COMPUTER COMPATIBLE: Connect to Windows and Mac computers via USB-C for live viewing, image capture, and video recording with no external power required.

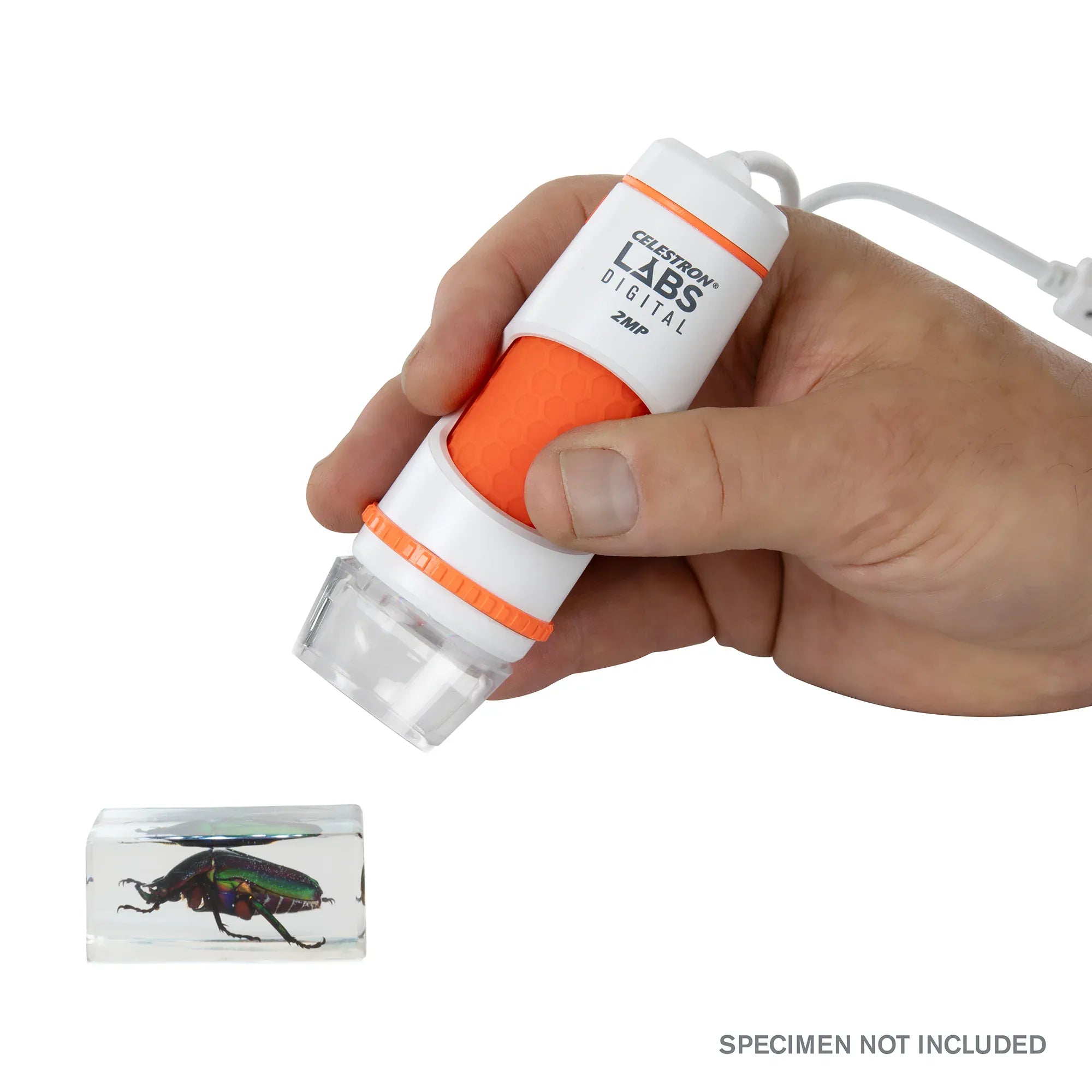

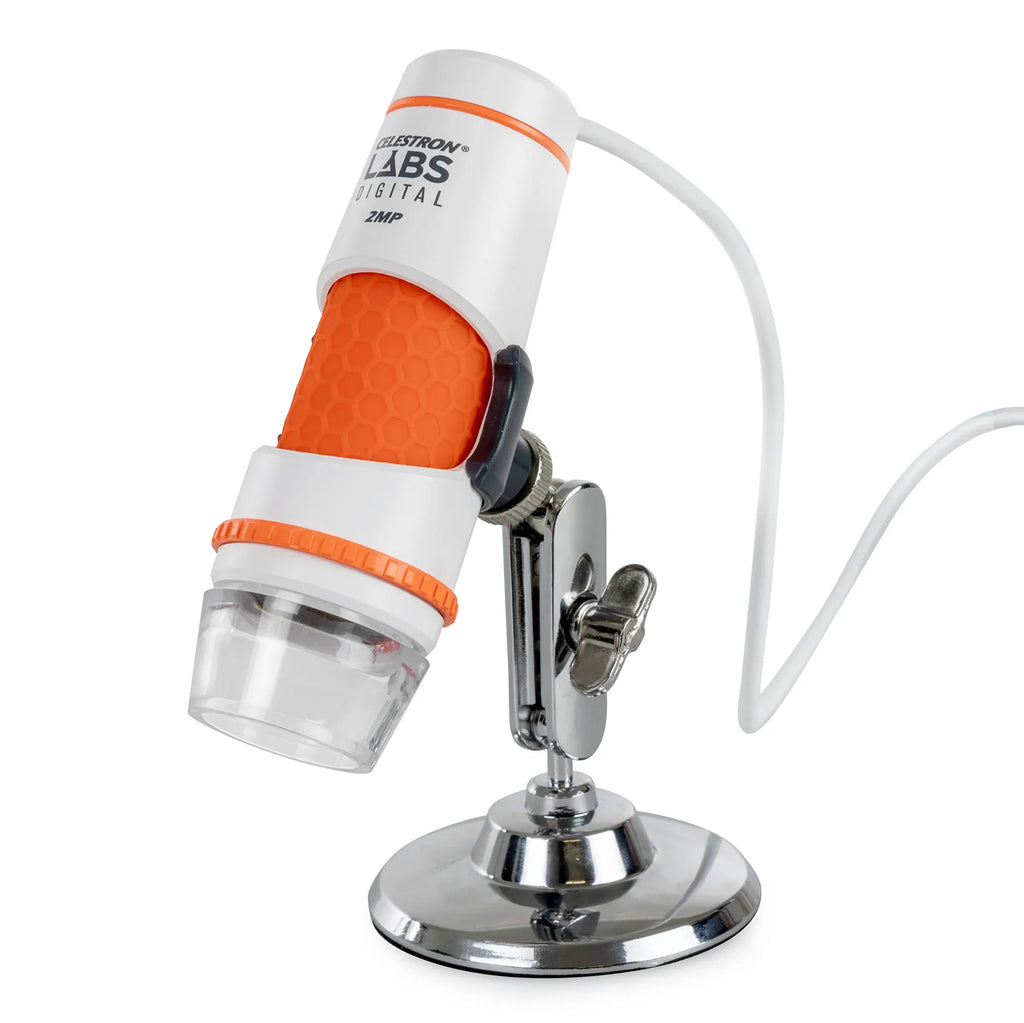

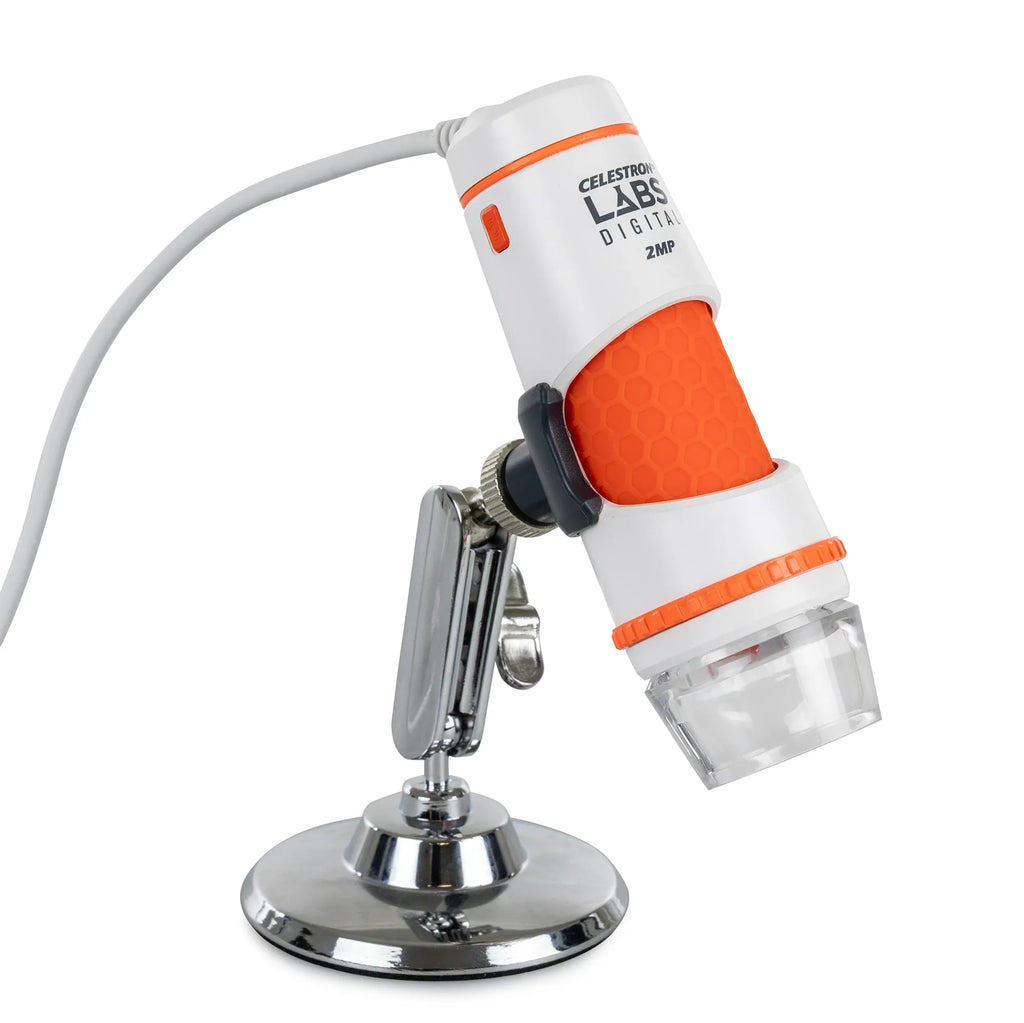

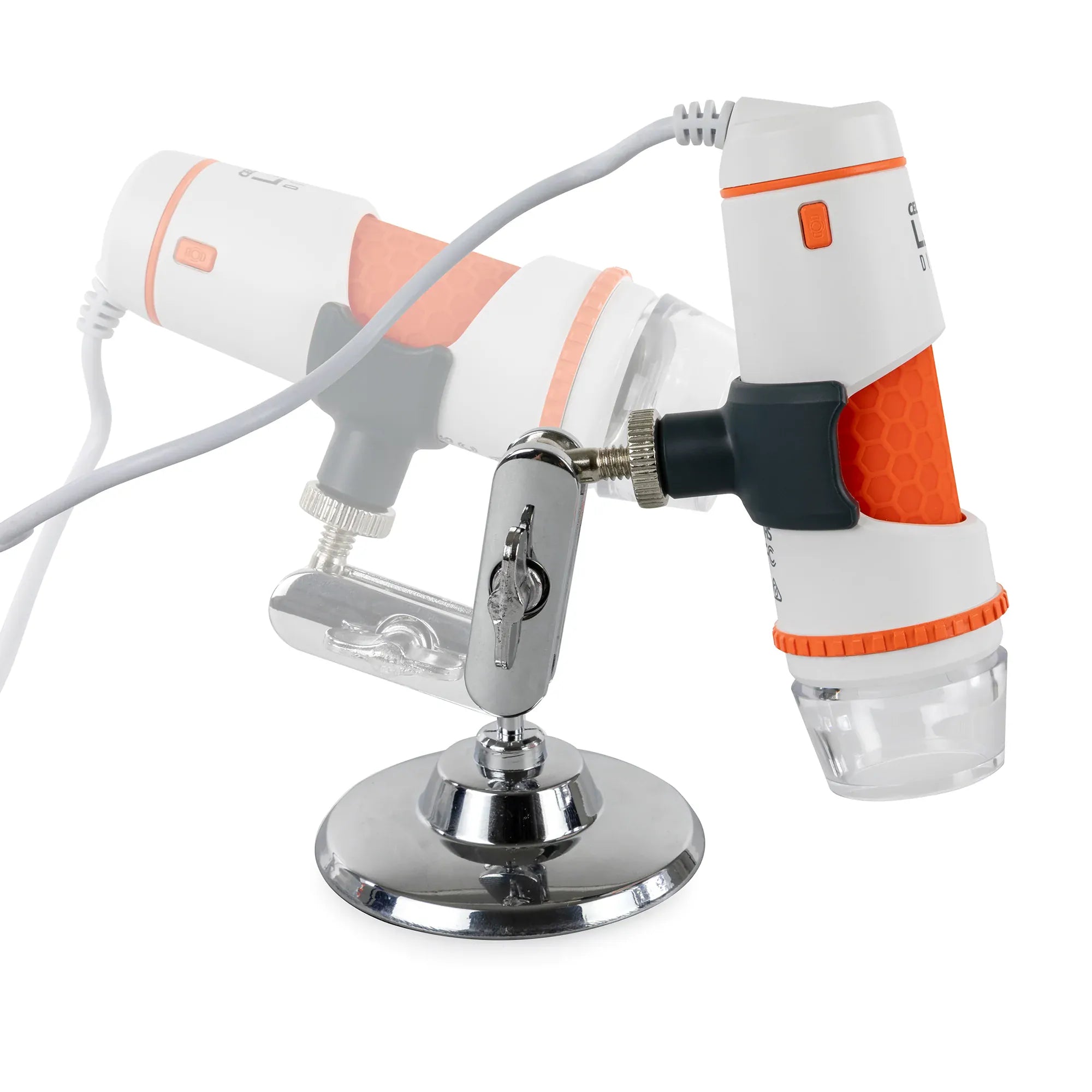

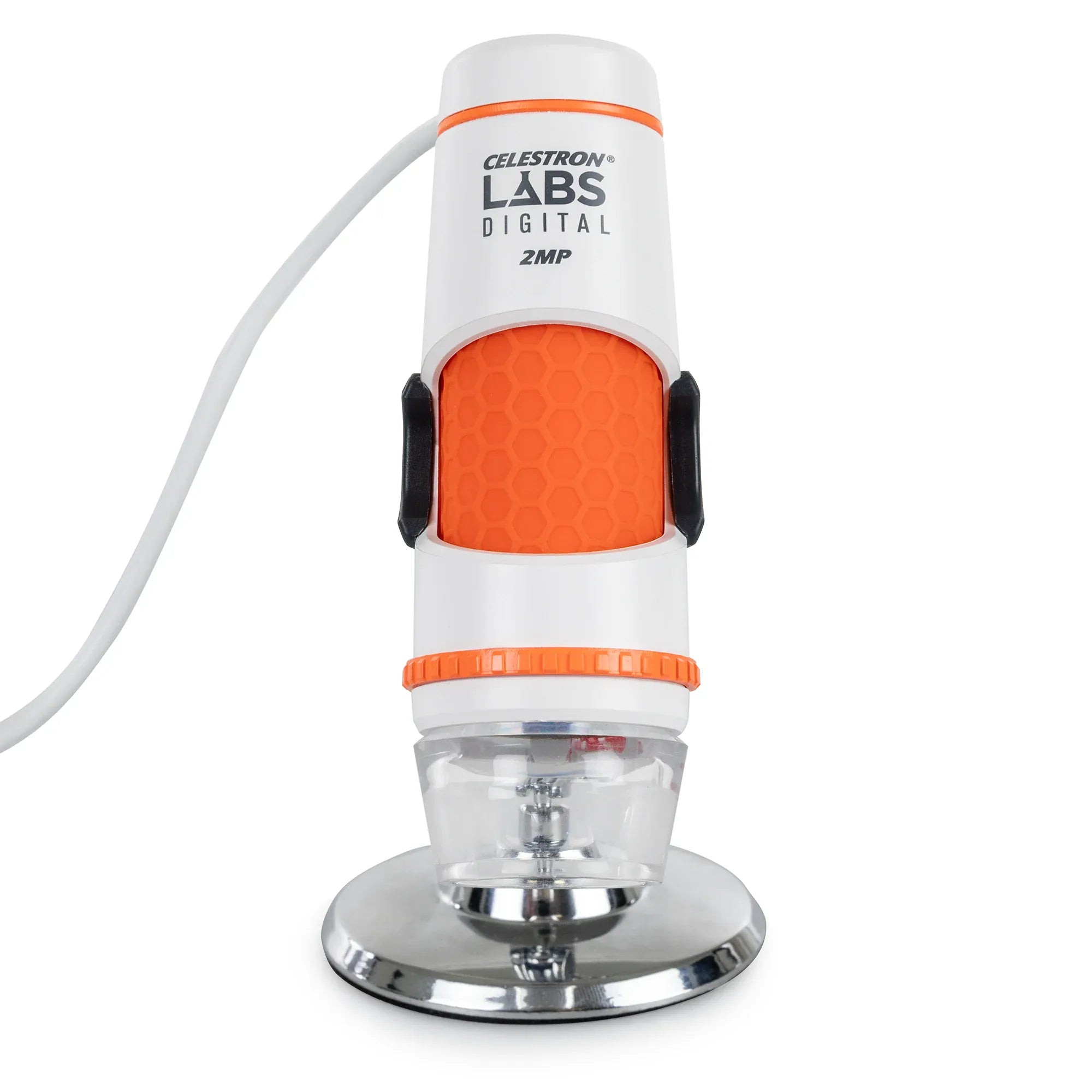

- HANDHELD OR HANDS-FREE VIEWING WITH ADJUSTABLE STAND: Examine specimens up close in handheld mode or mount the scope on the included metal stand.
- 1/4-20 TRIPOD THREAD FOR ADDITIONAL STABILITY: Mount the microscope on a standard photo tripod (sold separately) for steady, vibration-free imaging. To access the thread, release the locking nut of the microscope clip.

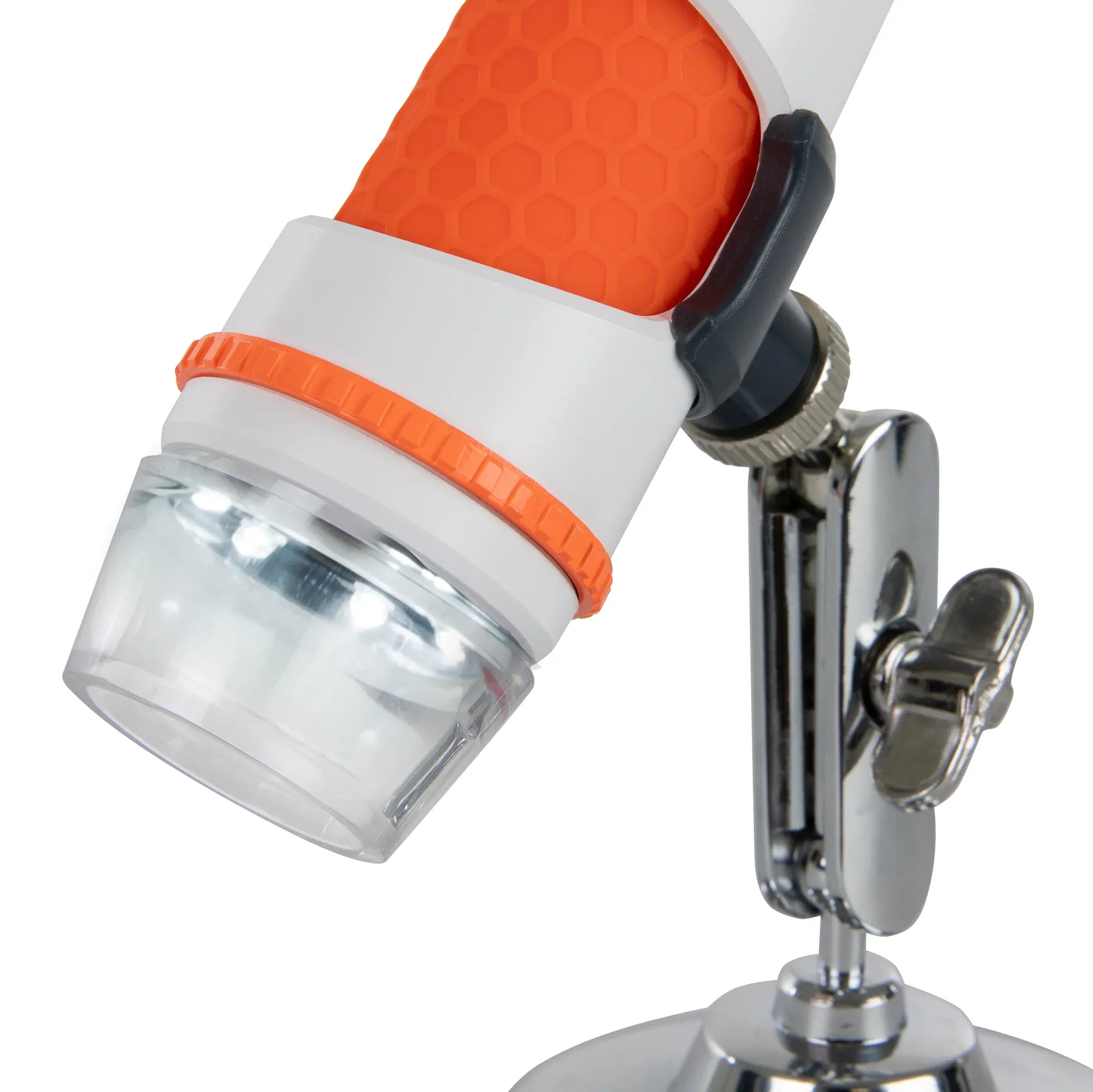

- ADJUSTABLE LED ILLUMINATION: Eight built-in white LEDs provide bright, even lighting. Adjust brightness for the perfect view of any specimen.
- BUILT-IN POLARIZING FILTER: Reduce glare and reflections on shiny or wet surfaces with the easy-to-adjust polarizing filter wheel for clearer, more detailed views.
- ONE-TOUCH SNAPSHOT BUTTON: Capture images directly from the microscope with the press of a button.
- DIGITAL SOFTWARE + CALIBRATION RULER: Free software enables you to view, record, measure, and take notes about your specimens on your desktop or laptop PC.
| Type of Microscope: | Handheld Digital |
|---|---|
| Nosepiece: | Clear plastic |
| Objective(s) Type: | Single adjustable internal objective |
| Focus Type(s): | Barrel focus: Course and Fine Focus |
| Magnification Range: | 20x to 200x |
| Illumination Type: | Ring Illuminator- 8 LED-Adjustable |
| Illumination Position(s): | Upper- At Nose |
| Illumination Adjustability Mechanism: | Adjustment Wheel- On barrel |
| Power Source: | 2.0 USB-C 5V (non-removable cable) |
| Eyepiece Type: | CMOS sensor in lieu of eyepiece |
| Sensor Type: | 2 MP CMOS |
| Sensor Size: | 1/ 2.9" Galaxycore GC2053 |
| Resolution: | 1920x1080 |
| Pixel Size: | 2.2 μm |
| Screen type: | Screen is your PC |
| Screen Size: | Screen is your PC |
| Memory Type: | No on-board memory |
| Still image capture resolution: | 1920 x 1080, 1280 x 720, 1024 x 768, 1024 x 576, 800x 600, 800 x 480, 640 x 480 |
| Video resolution: | 1920 x 1080, 1280 x 720, 640 x 480, Max frame rate 30fps |
| Video Format - Streaming: | MJPEG: 1920 x 1080, 1280 x 720, 640 x 480, Max frame rate 30fps |
| Shutter trigger position: | In Software and on body |
| Software: | Celestron Labs Digital Imaging HD Software |
| Software compatibility: | Windows 7.1 to Windows 11 | Mac OSX 10.5 and higher |
| Microscope Dimensions: | Microscope: 33mm x 33mm x 112.8mm (1.3" x 1.3" x 4.44") | Stand: 175mm x 140mm x 110mm (6.90" x 5.51" x 4.33") |
| Microscope Weight: | 97g (3.4 oz) |

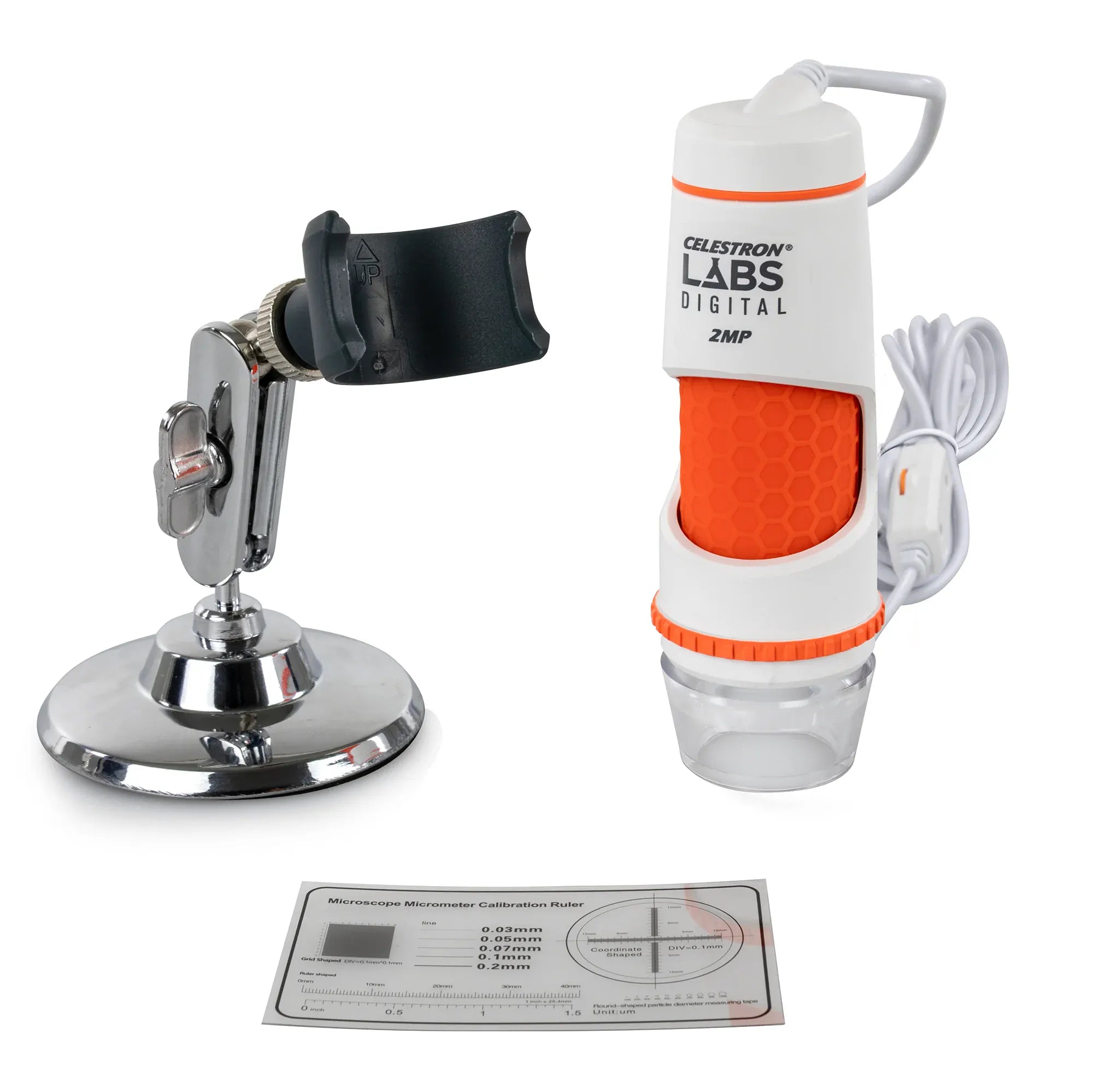

| Included Items: | Quick Setup Guide Plastic and metal adjustable stand Calibration Ruler Built in adjustable light polarizing filter |
