Description
Highlights

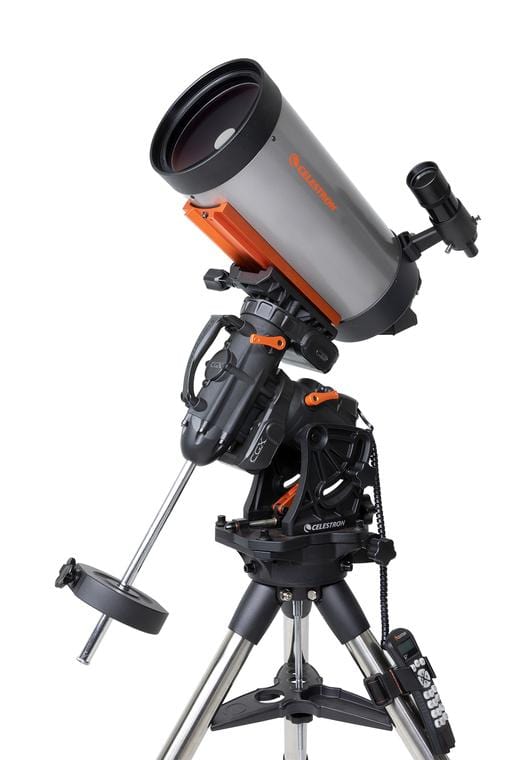

- 700 Maksutov-Cassegrain telescope with f/15 focal ratio provides high contrast views of the planets and lunar landscapes, perfect for serious planetary imagers and visual observers.
- Celestron's premium StarBright XLT coatings ensure maximum light transmission.

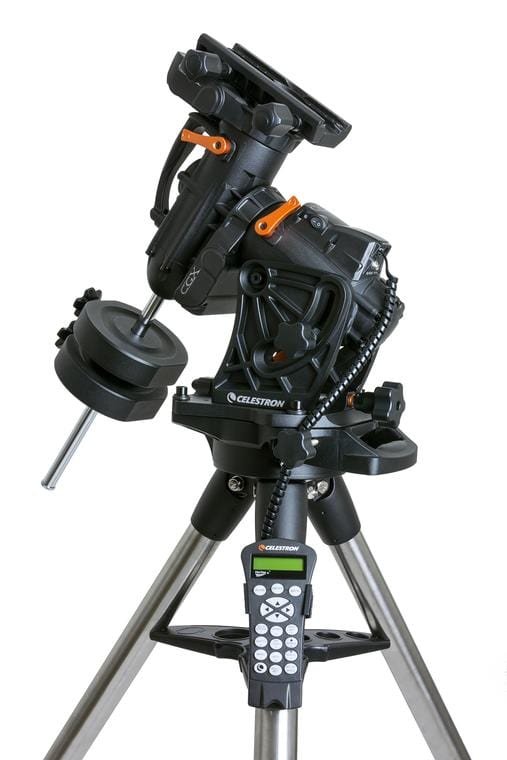

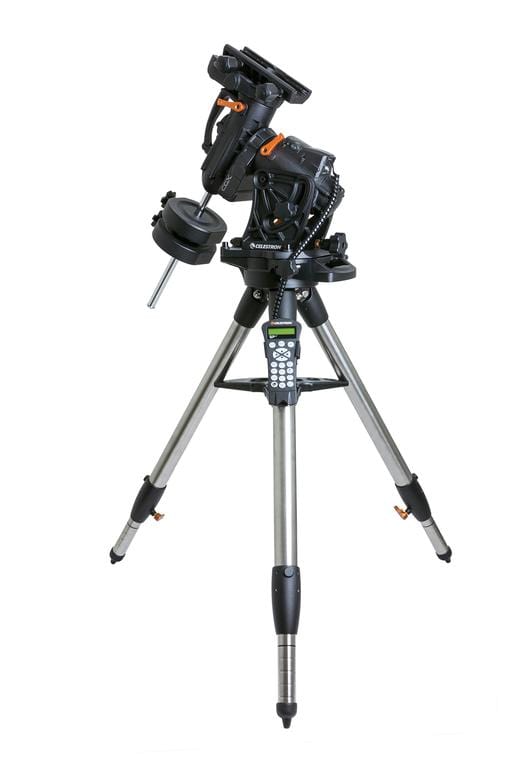

- The CGX, with its 55 lb load capacity, is Celestron's most innovative, state-of-the art, computerized equatorial mount to date, and provides a very sturdy and rigid platform.
- The drive system utilizes low cog DC Servo motors with integrated optical encoders, belt and pulley motor connection, spring-loaded steel worm gears supported by precision sealed bearings, and brass worm wheels for smooth, accurate slewing and tracking performance with little backlash.
- Accessories included: 2" Visual Back, 2" Star Diagonal with 1.25" adapter, 28mm eyepiece (2"), 8x50 finderscope
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | Maksutov-Cassegrain |
| Aperture: | 180mm (7.08") |
| Focal Length: | 2700mm (106.3") |
| Focal Ratio: | f/15 |
| Focal Length of Eyepiece 1: | 28mm (1.1") 2" eyepiece |
| Magnification of Eyepiece 1: | 96x |
| Finderscope: | 8x50 Straight Through |
| Star Diagonal: | 2" with 1.25" adapter |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 420x |
| Lowest Useful Magnification: | 67x |
| Limiting Stellar Magnitude: | 13.9 |
| Resolution (Rayleigh): | 0.64 arc seconds |
| Resolution (Dawes): | 0.52 arc seconds |
| Light Gathering Power (Compared to human eye): | 661x |
| Secondary Mirror Obstruction: | 40mm (1.57") |
| Secondary Mirror Obstruction by Diameter: | 22% |
| Secondary Mirror Obstruction by Area: | 5% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 571.5mm (22.5") |
| Optical Tube Diameter: | 222.25mm (8.75") |
| Optical Tube Weight: | 19 lbs (8.6 kg) |
| Dovetail: | CGE Dovetail Bar |
| Mount Info: | |
| Mount Type: | Computerized Equatorial |
| Instrument load capacity: | 55 lbs (25 kg) |
| Height adjustment range (includes mount and tripod): | 1200.15mm - 1968.5mm (47.25" - 77.5") |
| Tripod Leg Diameter: | 50.8mm (2") Steel tripod with graduated markings on lower section |
| Latitude adjustment range: | 3° - 65° |
| Mount Head Weight: | 44 lbs (20 kg) |
| Accessory Tray: | Yes |
| Tripod Weight: | 19.2 lbs (8.7 kg) |
| Weight of Counterweights: | 2 x 11 lbs |
| Slew Speeds: | 9 slew speeds - max speed 4°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports: | 2 AUX Ports (Hand Control can use either AUX Port) |
| Autoguide Port: | Yes |
| USB Port: | Yes, input for Mount and Hand Control |
| Power Requirements: | 12V DC, 4 amps |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction: | Yes |
| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App |
| Total Kit Weight: | 104.2 lbs (47.26 kg) |
| Included Items: | Optical tube CGX Equatorial Head CGX Tripod Accessory Tray 2 x 11 lbs counterweights NexStar+ Hand Control 8mm Allen Wrench 12V DC Power Cable Hand Control Holster |
| Additional Information | |
| Solar Warning |
|
Additional Resources
What can I see with this telescope?
Max reasonable eyepiece power (no Barlow) in good seeing is approximately
— mm (—×)
Bright objects such as the Moon and planets may allow you to use approximately
— mm (—×)
Larger aperture (diameter) telescopes will produce a brighter view of objects
Viewing location and sky conditions can vary and will affect actual results.
