Buckeye Stargazer 3D-Printed Tri-Bahtinov Masks for Meade Scopes for Collimation and Focus

Buckeye StargazerSKU: TriBahtinov-M8
Size: Meade 8" LX200/LX200GPS/LX90/LX90GPS/LX50/Model 2080 (F10) - TriBahtinov-M8
Price:
$31 CAD
Stock:
In stock: 2 units - Most orders placed by 2PM EST will be shipped out the same day (weekdays)

Customer Reviews

Based on 2 reviews
0%
(0)
50%
(1)
0%
(0)
0%
(0)
50%
(1)
J
John Hall
Almost perfect - Meade 12’’ LX200

It takes a little manipulation, but it will snap into the inner lip of the corrector plate. That aside - seems to do exactly as advertised.

S
Simon Hanmer
Tri-Bahtinov Mask (TBM) for 8” SCT

Well … I’m glad you asked. I just tried to fit the TBM on my 8” Meade LX-200 GPS scope - and it doesn’t fit !! The central hole is several mm too small to fit over the secondary mirror assembly. To say that I’m disappointed would be an under-statement. Now all I have is a trendy wall-ornament … I hope that you are going to do to fix this issue - otherwise I will have to re-think purchasing from Telescopes Canada in the future.

Simon Hanmer

Description

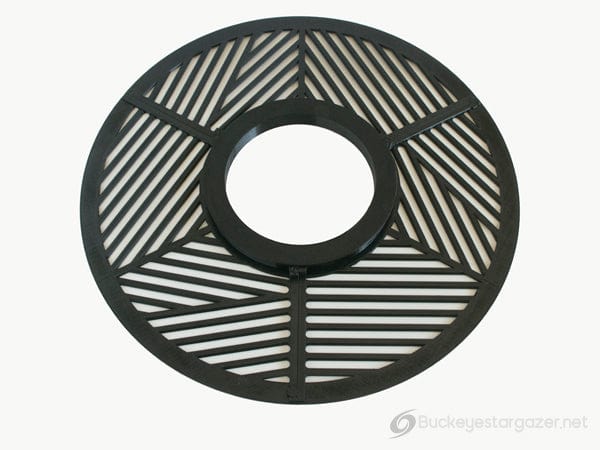

A Tri-Bahtinov mask operates under the same principle as the Bahtinov mask for focusing and adds the ability to collimate scopes with collimatable optics.
The design is based on Cytan's idea, documented on his Github site here, and the sketch was made using Satoru Takagi's Mask Generator.

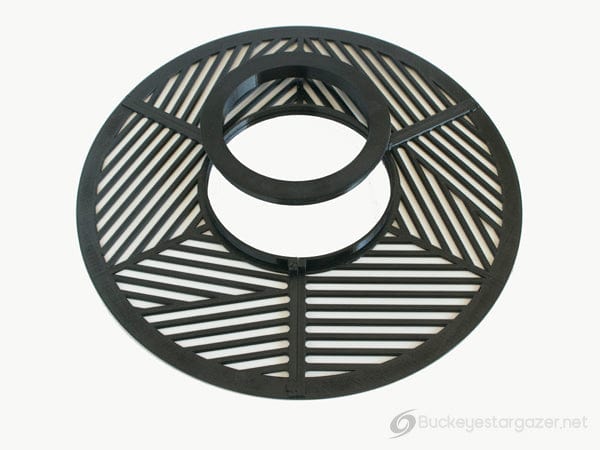

The mask has a raised center for an easy grip and comes in three sections that snap fit together and can be taken apart for easier storage (C5 is one piece, 14" and larger are 6 sections).

If you don't see your scope listed below Buckeye will be happy to design a mask to meet your needs.

Meade 8" LX200/LX200GPS/LX90/LX90GPS/LX50/Model 2080 (F10): TriBahtinov-M8
Meade 8" Model 2080 (F6.3): TriBahtinov-M8F6.3
Meade 8" LX90ACF/LX200ACF: TriBahtinov-M8LXACF
Meade 8" SN-8: TriBahtinov-M8SN8
Meade 10" LX200/LX200GPS/LX90/LX90GPS/LX50/Model 2120 (F10): TriBahtinov-M10
Meade 10" LX200 F6.3: TriBahtinov-M10LXF6.3
Meade 10" LX90ACF/LX200ACF: TriBahtinov-M10LXACF
Meade 10" LX600ACF/LX850ACF: TriBahtinov-M10LX600-850
Meade 10" LX200 EMC: TriBahtinov-M10LXEMC
Meade 12" LX200/LX200GPS: TriBahtinov-M12LX200
Meade 12" LX850: TriBahtinov-M12LX850
Meade 14" LX200/LX200GPS: TriBahtinov-M14LX200
Meade 14" LX200ACF: TriBahtinov-M14LXACF
Meade 16" LX200/LX200GPS: TriBahtinov-M16LX200
Meade 16" LX200ACF: TriBahtinov-M16LXACF

Instructions for Use:

Please see Cytan's wiki page.

**For Hyperstar versions, the center hole accommodates the Hyperstar, and will not go around cameras that are wider than the Hyperstar body.  In such cases the camera must be removed for installation and removal of the mask.

Printed in durable, temperature tolerant PETG filament.
