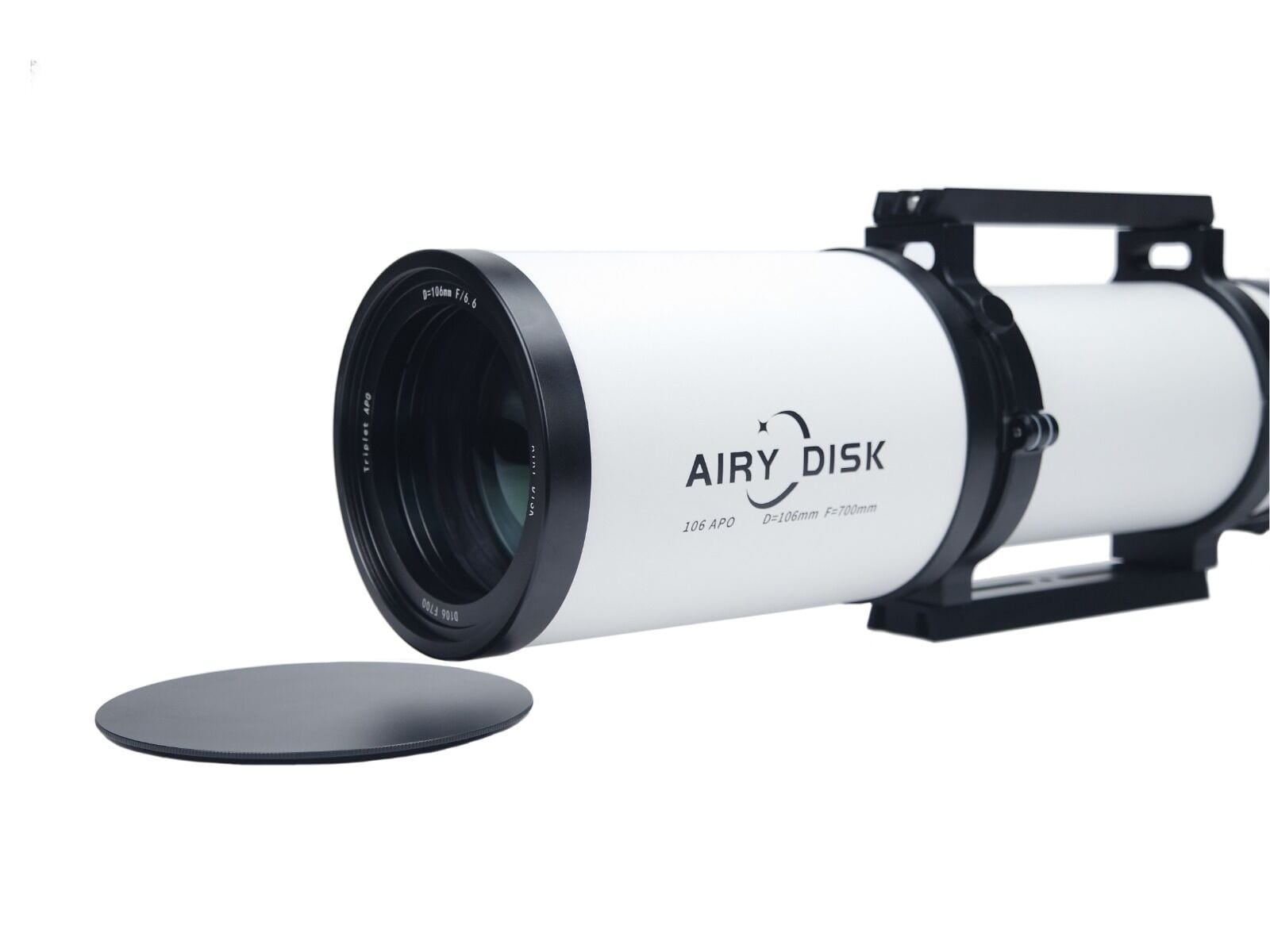

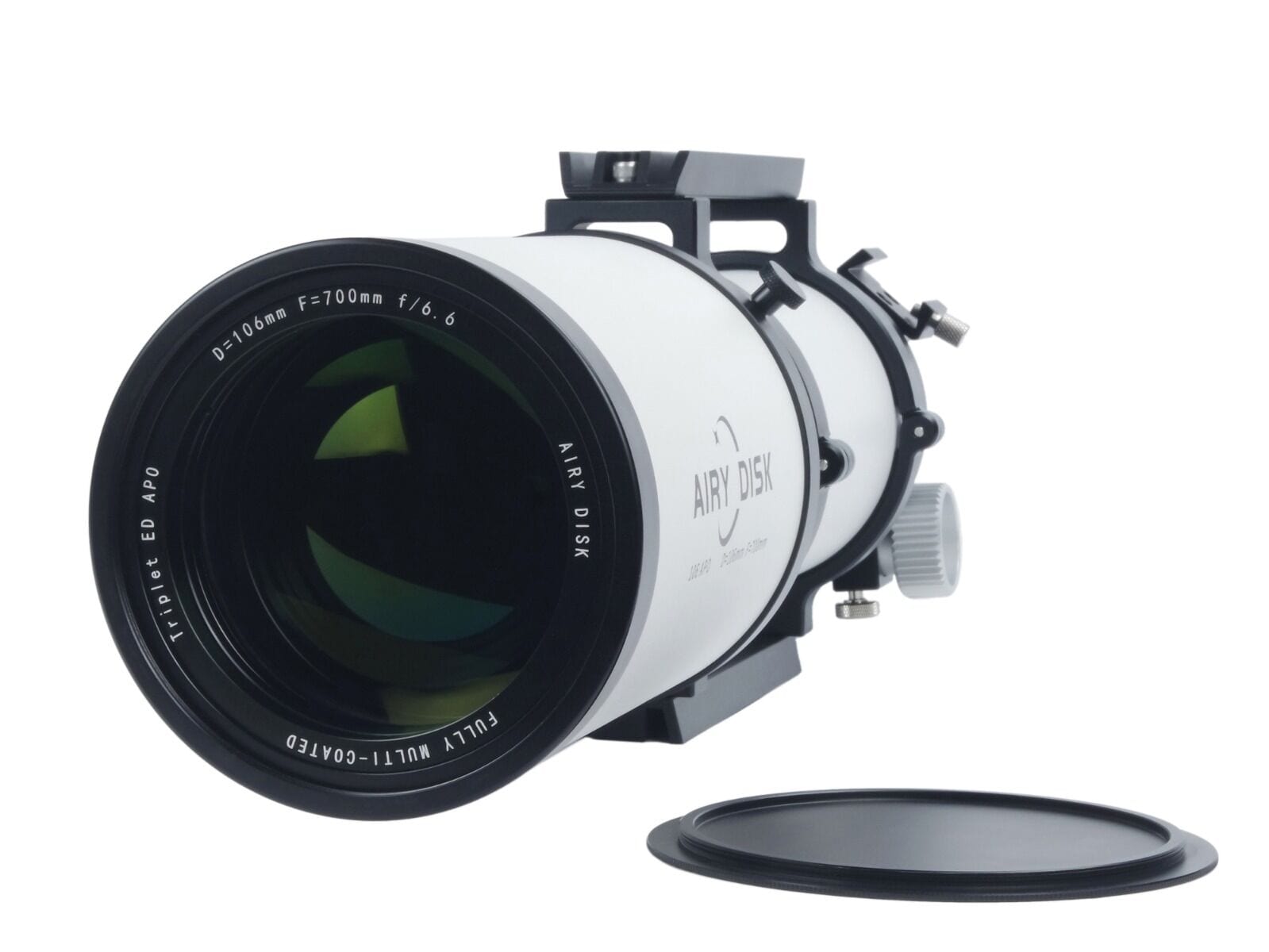

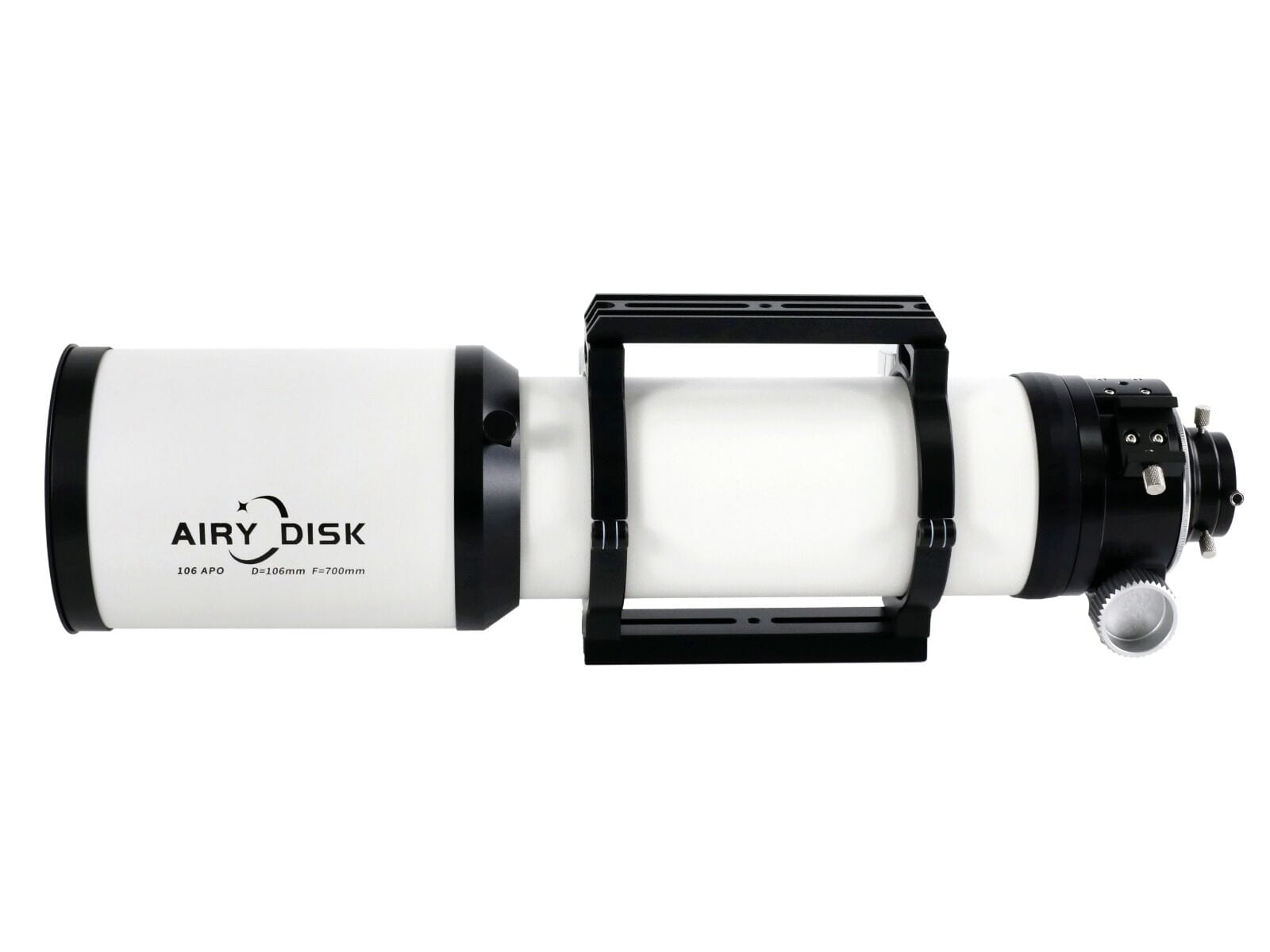

Airy Disk APO 106mm f/6.6 Triplet ED FCD-100 Apochromatic Refractor w/ Aluminum Case and 0.75x Flattener

Airy DiskSKU: Airy Disk 106APO

Price:
Sale price$2,832 CAD
Stock:
Only 1 unit left

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

A visually stunning, robust telescope. Perfect for the traveling astronomer. The 106mm Apochromat telescope is a dream come true for both astrophotography enthusiasts and visual observers who are seeking the utmost in contrast. With it’s slightly over 4-inch aperture, this telescope offers both portability and exceptional brightness.

The high quality triplet lens delivers a remarkably sharp image thanks to the utilizations of Hoya’s FCD100 ED  glass, known for it’s minimal color aberration, crafted in Japan. This combination ensures the ability to capture razor-sharp planetary observations and produce breathtaking astrophotographs.

Airy Disk Products Brochure

Airy Disk makes ED and APO telescopes, lenses, spherical and aspherical
mirrors with diameters ranging from 45mm to 400mm.

Our production process is highly integrated.

From lens and optical system design, nearly all steps of the telescope
making process are now in-house:

  • Blank Preparation, Lens Grinding, Polishing and Centering
  • Coating
  • Quality Control
  • Lens mounting
  • Final assembly and inspection, collimation and interferometric testing
    Packaging

The glass used comes from CDGM and Hoya.

Lens mounts are made by the inhouse CNC department as are most of
the telescope components.

State of the art testing equipment, a huge collection of spherical
masters, Fizeau interferometer in red(632.8nm), TwymSan green in
green spectrum(532nm), artificial star and Ronchi.

This control over the whole manufacturing process combined with our
skills and experience results in outstanding optics.

Decades of specialized ED production using Ohara FPL53. Over the
years, the company has provided optical system design, production,
and OEM production for many well-known brands in China.

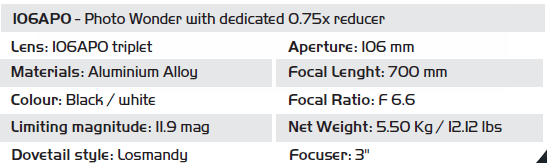

Specifications

Glass Used: HOYA FCD1, CDGM
Color: White
Tube Material: Aluminum Alloy
Aperture: 106mm
Focal ratio: f/6.6
Focal length: 700mm
Weight: 5.5kg / 12.12lbs
Coating: Full surface wideband multilayer coating
Resolving Power: 1.09"
Limiting stellar magnitude: 11.9mag
Dovetail style: Vixen
Flattener Details: 0.75x flat field reduction to 525mm f/5,0.92x flat field reduction to 644mm f/6, CAA, M48-T2 connection
Focuser: 3" dual-speed 1:10 rack-and-pinion
Eyepiece Clamp: 2" with 1.25" Adapter
Suitable Photo sensor: Full Frame
Length (hood extended): 645mm
Length (hood in): 550mm
