Baader 2" Deluxe eyepiece clamp for SC-telescopes (available with filter holder / extension) - 2958145

Baader PlanetariumSKU: 2958145

Price:
Sale price$104 CAD
Stock:
In stock: 2 unit(s) - Most orders placed by 2PM EST will be shipped out the same day (weekdays)

Description

Highlights

  • 60mm optical length
  • Eyepiece deLuxe 2" (T-2 component # 17) with two filter holders (M48), 2" extension tube 2" and M58 thread for connection to all SC-Telescopes
  • 2" Up with bronze clamping ring
  • 2 clamping screws Ultrahard receptacle with securing groove

Recommended in the version with filter holder or 60mm extension incl. 2x filter holder

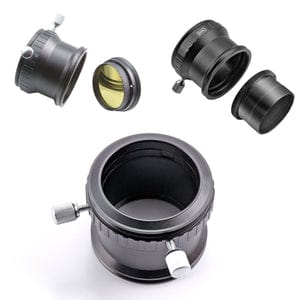

To the right you see a short animation to our accessory, the Baader 2" DeLuxe eyepiece clamp in the version with 2" filter holder (#2958144) – to use on the 2" tube thread on most SC-telescopes. With the 3,3" Adapter (#2408145) you can also use it on C11 / C14 telescopes.

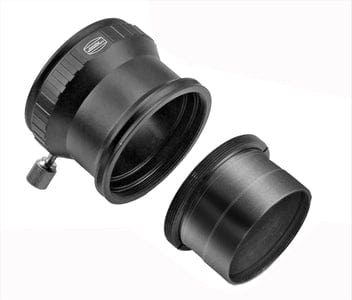

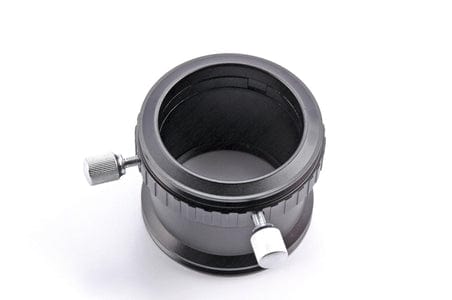

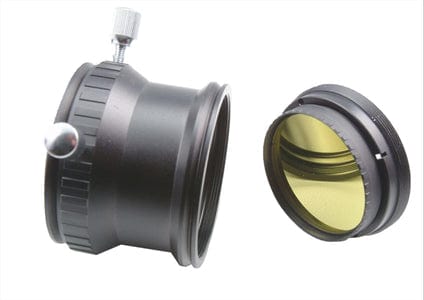

The 2" Deluxe eyepiece clamp consists in the base version of two parts. The eyepiece clamp and a factory-mounted inner thread ring, that reduces the native telescope sided M58 inner thread to a 2" inner thread. In the Version SC-Deluxe eyepiece clamp with 2" filter holder(#2958144) the third part is a M48 filter holder. This filter holder must be threaded onto the 2" telescope-thread to hold any of our 2" filters.

When both parts are threaded onto any SC-telescope, the combo looks like our normal 2" Deluxe-clamp, but the performance is much better than any 2" SC-clamp on the market, since the customer may seal the optical tube from dust and moisture and may cut off the unwanted parts of the light for their application, like using a UV/IR-Filter to cut the infrared - or use a nebula filter UHC-S or O III - or any other filter.

The important difference is that our 2" filters are optically polished to not destroy or impair the wavefront of light and to retain perfect sharpness even under high magnification.

Specifications

Manufacturer Baader Planetarium
SKU (#) 2958145
EAN Code 4047825007285
Net weight (kg) 0.19
Optical length (mm) 53
Clamping System Screw clamps
T-2 Part # 17A + 17C + 19
Screw Type 2x M4 clamping screws
Inner Diameter / Clear Aperture (mm) 46
Outer Diameter 67
Inner Connection (lens sided) Thread, M48, M58, 2" (50,8mm)
Outer Connection (lens sided) Dovetail ring, S65
Inner Connection (eyepiece/-camera-sided) Clamp, 2" (50,8mm)
Outer Connection (eyepiece/-camera-sided) Dovetail ring, S65
Adaptable to SC teleskopes C11 and C14
Compatible Brands UNC, Baader Planetarium, Celestron
Type of Adapter Extension, Eyepiece Clamp, Filter holder
