Baader M68 Tele-Compendium Set of connectors and spacers (* Only available together with FFC or TZ-systems) - 2459258

Baader PlanetariumSKU: 2459258

Price:
Sale price$704 CAD
Stock:
In stock: 2 units - Most orders placed by 2PM EST will be shipped out the same day (weekdays)
Description

Highlights

  • Telescopic connection for Baader FFC and telecentric systems
  • Consisting of 9 components: 1x Four-In-One (T-2 version) adapter M68/T-2/M68 (T-2 male Inverter #26 included ) # 245 8225; 1x T-2 / Extension Tube 40mm # 150 8153 (T-2 #25B); 1x M68 Extension tube 80mm # 245 8208; 2x M68 Extension tube 40mm # 245 8204; 2x M68 Extension tube 10mm # 245 8201; 1x M68/2"/M68Ultra short clamp 2" focus-side M68, telescope-side M68 (Zeiss) and M60 (Vixen) # 245 8196 (T-2 #32); 1x 2"/T-2 Nose Piece and Camera adapter # 240 8150 (T-2 #16)

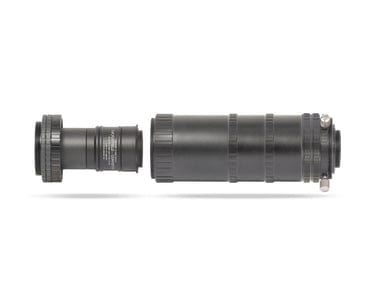

Baader M68 Tele-Compendium

Telescope connection for Baader FFC and telecentric Systems

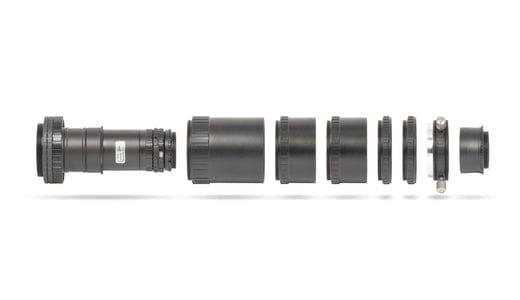

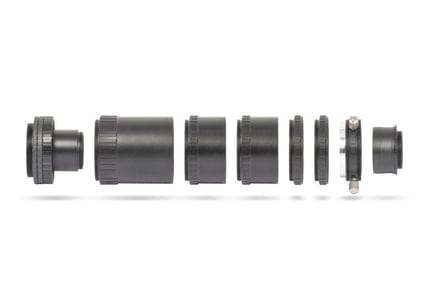

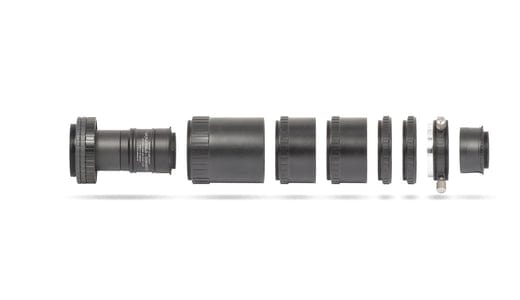

Scope of Supply of the M68-Tele-Compendium
Anwendungsbeispiele des M68-Tele-Compendiums

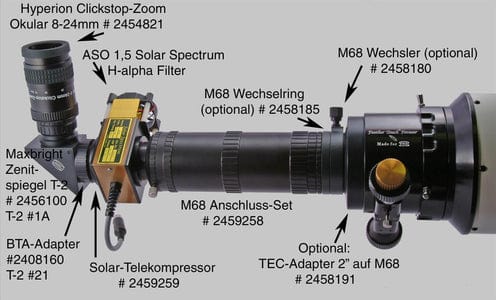

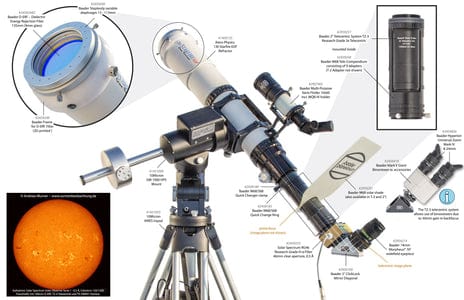

Examples of M68 tele-compendium

Telescopes which are used for photography on a professional level need to avoid any deflexure under load. This flexure is is no problem if you observe only visual, but for photography or spectroscopy any deficiencies will make your results unusable. So, you do not only need a sturdy mount with a robust connection to the telescope, but also a very good focusser – with a sturdy connection to equipment like cameras or others sensors, especially if they are used with long accessories like telecentric systems. Usually, these accessories are only attached with a simple plug-in connection. Even with good, self-centering eyepiece-holders with brass clamping ring long accessories can tilt because of the long lever. This tilt will impair professional operation. There is no better adaption than a generously sized screw coupling.

The Baader M68 Tele-Compendium solves this problem. It combines the function of a photographic compendium or matte box, which is a versatile lens hood, with a very sturdy and variable telecope adapter – that's why we have chosen the name Tele-Kompendium. This set is based on the M68-thread which is also used on the large Zeisstelescopes. Because of this, M68 is quite common and perfect for a sturdy connection of optical accessories like the Fluorit Flatfield Converter (FFC) for photographung the planets or a Telecentric System together with H-alphasytems for solar observation.

Connections of the Baader Tele-Compendium

The Tele-Kompendium is screwed onto the telescope. On the telescope side, there are threads for 2,7" (Astro Physics), M68 (Zeiss), M60 (Vixen) and a female M56-thread (Synta). There are optinal adapters for the following systems avaiable:

  • TEC/Feathertouch-focusers
  • Baader 3" Steeltrack- und Hyperion-focusers
  • Pentax-SD-telescopes
  • Takahashi
  • Celestron (3,3"-SC-thread)
  • Zeiss (M68 quick changer)

FFC or Telecentric System are coupled by a T-2-thread at the telescope-side of the Tele-Kompendiums. On the eyepiece side there is the Baader Ultrashort Adapter, which offers a M68-thread as well as standard 2“ eyepiece holder with brass ring and two locking screws to avoid tilting. A 2“/T2 nosepiece is also included – there are many accessories avaiable which use the T-2-thread. Because the 2“-connection is at the far end of the setup, the leverage effect is reduced – and brass clamping ring and two locking screws hold the accessories firmly in place.

The seperate extension tubes enable you to use the system with variable length according to the needs of your setup to achieve the best resultsuse every distance. At the same time, stray light is blocked – no light from the outside can diminish the contrast, and the inside of the telecompendium is carefully blacked.

Optionally available Telescope Adapters of the M68-Tele-Compendium.
Manufacturer Baader Planetarium
SKU (#) 2459258
EAN Code 4047825008688
Net weight (kg) 0.65
Optical length (mm) variabel
Clamping System Screw clamps
Screw Type 2x M4 clamping screws
Inner Diameter / Clear Aperture (mm) 39
Outer Diameter 75
Inner Connection (lens sided) Thread, M56 x 1
Outer Connection (lens sided) Thread, M60, M68 x 1, 2,7"
Inner Connection (eyepiece/-camera-sided) Thread, Clamp, M48, 2" (50,8mm)
Outer Connection (eyepiece/-camera-sided) Thread, T-2 (M42 x 0,75), M68 x 1
Compatible Brands Baader Planetarium, Zeiss
Type of Adapter Camera Adapter, Extension, Eyepiece Clamp
