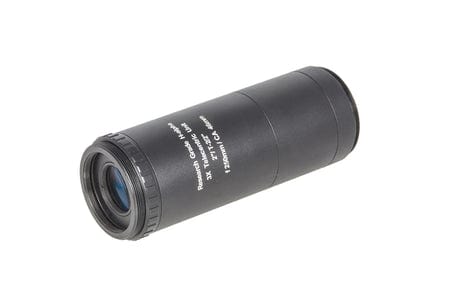

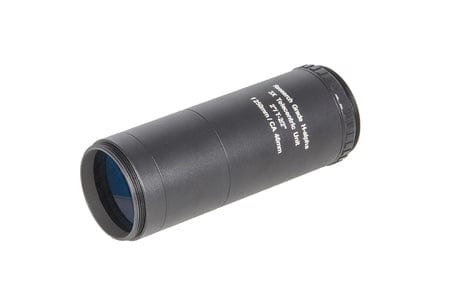

Baader Research Grade TZ-3 Telecentric System (3x Focal Length) - 2459257

Baader PlanetariumSKU: 2459257

Sale price$672 CAD
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock

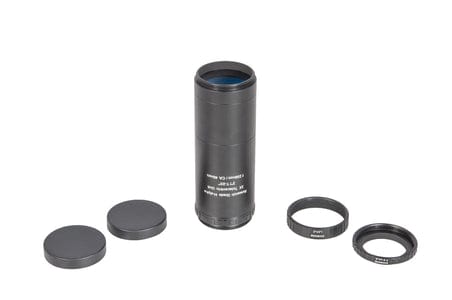

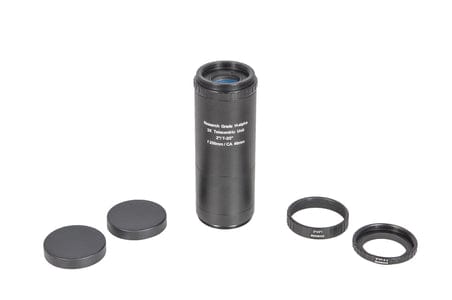

Research Grade Telecentric Unit, featuring an oversized pick up expanding lens set and 2" (50.8mm) threads on both sides – T-2 Adapter and 2" m/f inverter ring are both included as standard accessories
46mm clear aperture at the H-alpha-filter entrance side - suitable for research grade SolarSpectrum H-alpha filters

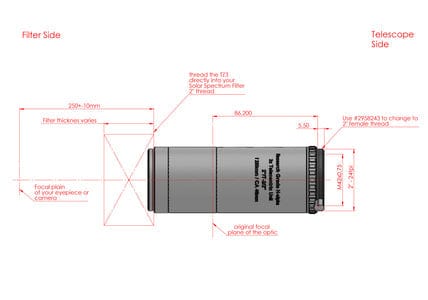

Large working distance of 250mm for optimized focal length reduction with a telecompressor and suitable room for adapting a binocular viewer
Aplanatic, with 3x focal length extension to achieve a parallel f/30 beam in conjunction with ~f/10 optics systems – free of field curvtare
Primarily calculated and produced for H-alpha at 656,3 nm, delivering 99% Strehl (99% definition brightness )
Diffraction limited design also at 396 nm (CaK)


Manufacturer Baader Planetarium
SKU (#) 2459257
EAN Code 4047825008695
Weight (kg) 0.37
Focal length extension 3x

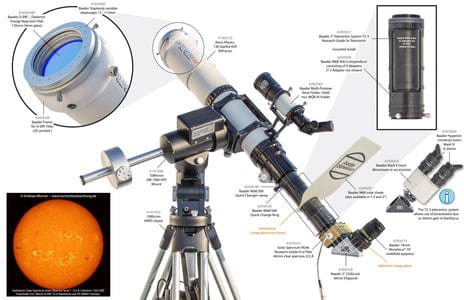

Usage for H-alpha observation with SolarSpectrum filters
Inner Connection (lens sided) Thread, T-2 (M42 x 0,75), 2" (50,8mm)
Outer Connection (lens sided) Thread, 2" (50,8mm)
Outer Connection (eyepiece/-camera-sided) Thread, T-2 (M42 x 0,75), 2" (50,8mm)
